Name: 1.6MPa Aluminum Plate Fin Heat Exchanger With Dual Media Cooling For Construction Machine
Brand: Biala (Wuxi) Thermal Technology Co., Ltd.
SKU: B-004
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Material: Aluminum Alloy

Air Pressure: 1.6MPa

Oil Pressure: 2.0MPa

Heat Area: 20-30㎡

Air Flow: 10-35m³/min

Oil Flow: 50-220L/min

Highlight:

1.6MPa Aluminum Plate Fin Heat Exchanger

Construction Machine Aluminum Plate Fin Heat Exchanger

2.0MPa aluminum fin heat exchanger

Basic Infomation

Place of Origin: China

Brand Name: Biala

Certification: ISO-9001

Model Number: B-004

Payment & Shipping Terms

Packaging Details: Customized packing

Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders

Payment Terms: T/T, L/C

Supply Ability: 10,000 units/year

Gallery

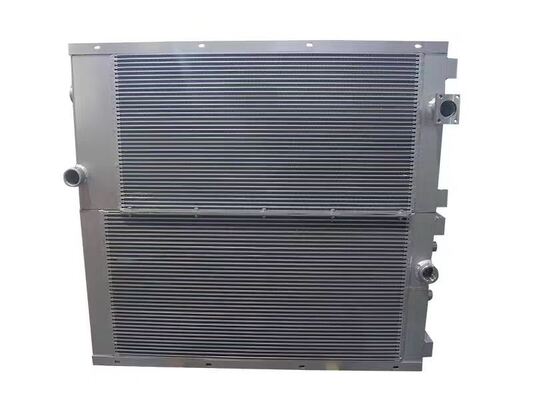

1.6MPa Aluminum Plate Fin Heat Exchanger With Dual Media Cooling For Construction Machine

Product Description

1.6MPa Aluminum Plate Fin Heat Exchanger With Dual Media Cooling For Construction Machine

Construction Machinery Cooler/Heat Exchanger

This aluminum plate-fin heat exchanger is a professional industrial cooling solution for air compressors, construction machinery, and hydraulic equipment. It efficiently dissipates heat from compressed air and hydraulic oil to stabilize working temperature, prevent equipment overheating, and extend service life.

Featuring an integrated dual-channel design, it meets dual-media cooling requirements while saving installation space. Manufactured from high-quality aluminum alloy with precise welding and strict pressure testing, the product offers leak-proof performance, vibration resistance, and long service life. The compact modular structure supports quick installation and easy maintenance.

Customized sizes and connectors are available to adapt to various working conditions, providing stable and cost-effective cooling performance for global industrial applications.

Features & Highlights

High heat exchange efficiency with fast heat dissipation and energy savings
High-strength aluminum alloy material with anti-corrosion and wear resistance
Dual-media cooling design with compact, space-saving structure
Strict pressure resistance and 100% leakage testing for safe operation
Flexible installation, easy maintenance, and strong compatibility

Technical Parameters

Item	Specification
Product Type	Plate Fin Heat Exchanger
Main Material	Aluminum Alloy
Air Side Working Pressure	1.6MPa
Oil Side Working Pressure	2.0MPa
Heat Exchange Area	20-30㎡
Rated Air Flow	10-35m³/min
Rated Oil Flow	50-220L/min
Max Working Temperature	180℃
Testing Pressure	3.0MPa
Connection Type	Flange / Threaded

Operating Environment

Item	Requirement
Ambient Temperature	-40℃ ~ +60℃
Relative Humidity	10%-95% (non-condensing)
Working Altitude	≤2000m
Cooling Medium	Natural Air
Applicable Medium	Hydraulic Oil, Lubricating Oil, Compressed Air
Installation Site	Ventilated, Dustproof Indoor & Outdoor

Product Advantages

Material: High-purity aluminum alloy with excellent thermal conductivity and lightweight performance
Craftsmanship: Integral brazing and precision welding technology for overall structural stability
Performance: Optimized fin structure ensures high cooling efficiency and low pressure loss
Quality Control: Full-process inspection and hydraulic pressure testing guarantee stable quality
Global Applicability: Customized solutions to fit various regional industrial standards and working conditions

Target Market

Main target markets include Southeast Asia, Europe, North America, Middle East, Africa, and Oceania. Widely applicable to industrial machinery, construction equipment, mining industry, power equipment, heavy trucks, and marine supporting facilities, covering OEM supporting and after-sales maintenance markets worldwide.
