Name: Corrosion Resistant All Aluminum Dry Cooler Heat Exchanger Plate Fin Radiator Heavy Duty
Brand: Biala (Wuxi) Thermal Technology Co., Ltd.
SKU: B-009
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Core Material: High-Purity Aluminum Alloy

Working Pressure Air: 1.6 MPa

Working Pressure Refrigerant: 3.0 MPa

Heat Exchange Area: 5-25 M²

Max Operating Temperature: 120°C

Fin Density: 20-35 Fins/inch

Highlight:

Corrosion Resistant dry cooler heat exchanger

Aluminum dry cooler heat exchanger

Heavy Duty plate fin radiator

Basic Infomation

Place of Origin: China

Brand Name: Biala

Certification: ISO-9001

Model Number: B-009

Payment & Shipping Terms

Packaging Details: Customized packing

Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders

Payment Terms: T/T, L/C

Supply Ability: 10,00 units/year

Gallery

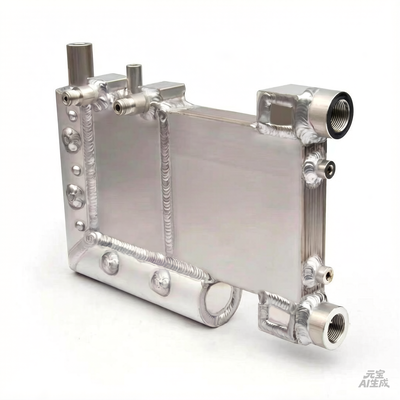

Corrosion Resistant All Aluminum Dry Cooler Heat Exchanger Plate Fin Radiator Heavy Duty

Product Description

High-Efficiency Plate-Fin Heat Exchanger with Durable Industrial-Grade Build and 100% Leak-Proof Reliability for Cold Dryers

Versatile Dry Cooler Heat Exchanger Suitable for Various Industrial Cooling Applications and Thermal Management

Product Description

This high-performance aluminum plate-fin heat exchanger is a core component for refrigerated air dryers (cold dryers), engineered to efficiently cool and dehumidify compressed air in industrial air systems. It delivers reliable heat exchange between compressed air and refrigerant, lowering air temperature to remove moisture, ensuring dry, clean compressed air for pneumatic equipment, manufacturing lines, and air compressor systems.

Crafted from premium aluminum alloy with advanced vacuum brazing and precision welding, it offers exceptional thermal conductivity, corrosion resistance, and pressure stability. Each unit undergoes 100% rigorous leak testing to ensure zero failure. Its compact, robust design enables easy installation and low maintenance, while fully customizable core sizes and connection types ensure seamless integration into various cold dryer models, providing long-lasting, high-efficiency performance for global industrial applications.

Features & Highlights

Cold Dryer Specific: Optimized core structure for refrigerated air dryers, maximizing moisture removal efficiency.
High-Efficiency Heat Exchange: Advanced plate-fin design delivers superior cooling performance with minimal pressure drop.
Durable Industrial-Grade Build: High-strength aluminum alloy resists corrosion, vibration, and harsh industrial environments.
100% Leak-Proof Reliability: Precision brazing and full pressure testing guarantee safe, long-term operation.
Fully Customizable Design: Adjustable core dimensions, connections, and cooling capacity to fit various cold dryer models.

Technical Parameters

Item	Specification
Product Type	Refrigerated Air Dryer (Cold Dryer) Plate-Fin Heat Exchanger
Core Material	High-Purity Aluminum Alloy
Design Working Pressure (Air Side)	1.6 MPa (Customizable)
Design Working Pressure (Refrigerant Side)	3.0 MPa (Customizable)
Test Pressure	2.4 MPa (Air Side) / 4.5 MPa (Refrigerant Side)
Heat Exchange Area	5-25 m² (Customizable)
Applicable Media	Compressed Air, Refrigerant (R134a/R410a)
Max Operating Temperature	120°C
Connection Type	Threaded / Flange (Customizable)
Fin Density	20-35 fins/inch (Optional)

Operating Environment

Item	Requirement
Ambient Temperature Range	0°C ~ +45°C
Relative Humidity	10%-95% (Non-Condensing)
Maximum Operating Altitude	≤ 2000 m (Derating for >2000 m)
Cooling Medium	Refrigerant / Compressed Air
Installation Condition	Well-Ventilated Indoor, Dust-Proof
Vibration Resistance	Compliant with Industrial Compressor System Standards

Product Advantages

Material: High-strength, corrosion-resistant aluminum alloy delivers excellent thermal conductivity and lightweight performance.
Craftsmanship: Advanced vacuum brazing and precision welding ensure an integral, seamless, high-strength structure.
Performance: Optimized dual-flow channel design achieves efficient cooling and dehumidification with minimal energy loss.
Quality Control: 100% factory pressure testing, leak detection, and performance inspection meet international industrial standards.
Global Applicability: Fully customizable solutions to fit diverse cold dryer OEM requirements and regional industrial applications worldwide.

Target Market

Main target markets include North America, Europe, Southeast Asia, the Middle East, and Oceania. Widely applicable to refrigerated air dryer manufacturers, air compressor system integrators, industrial pneumatic equipment suppliers, and global after-sales maintenance markets for compressed air systems.
