Diesel Generator Cooler Fan Shroud Assembly Plate Fin Heat Exchanger Parts Replacement

Sample order acceptable
MOQ
Negotiable
Price
Diesel Generator Cooler Fan Shroud Assembly Plate Fin Heat Exchanger Parts Replacement
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 1.4–2.2mm High Temperature Resistant Cold Rolled Steel
Surface Coating: Heatproof Blue Polyester Electrostatic Spraying
Matching Fan Diameter: 300–550mm Customizable
Heat Resistance Limit: Continuous 130°C Ambient Radiation
Processing Craft: Laser Cutting, Integral Bending, Full Perimeter Welding & Spraying
Ambient Temperature Range: -35℃ ~ +72℃, Long-term Nearby Engine Heat Radiation
Highlight:

Diesel Generator Fan Shroud

,

Generator Cooler Shroud Assembly

,

Generator Fan Shroud Replacement
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

Diesel Generator Cooler Fan Shroud

Diesel Generator Cooler Fan Shroud
Product Overview

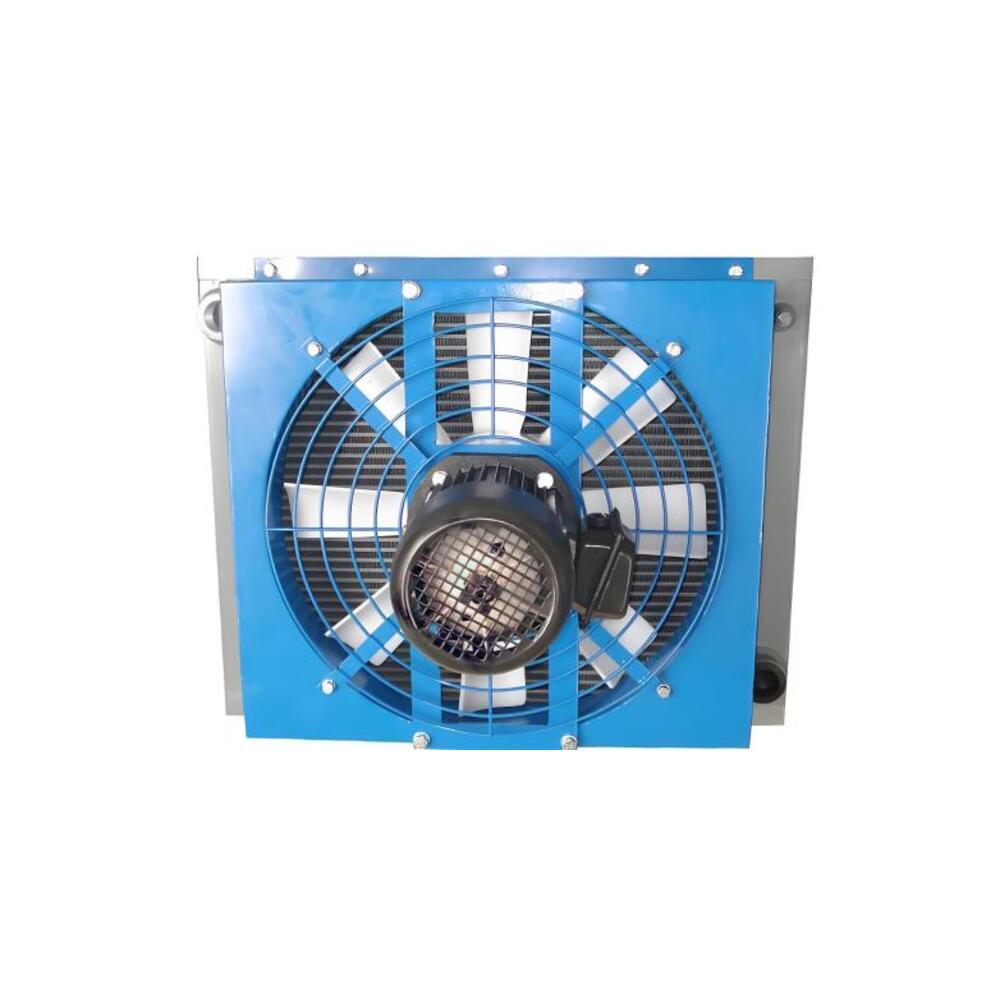

This square fan shroud is specially designed for diesel generator set cooling radiators. It features an integrated one-piece square frame structure with bright blue anti-high-temperature spraying. The built-in concentric circular wind guide cavity stabilizes airflow and reduces hot air recirculation. Multiple fixed bolt holes precisely match generator cooling modules, while high-temperature resistant steel plate withstands long-term heat radiation from diesel engines. Customized frame sizes and fan diameters are available for both stationary and mobile generator units.

Key Features
  • Generator-Specific Square Frame - Perfectly matched with diesel engine integrated cooling radiators
  • High-Temperature Resistant Spraying Layer - Maintains stable color and anti-oxidation under long-term heat radiation
  • Concentric Round Wind Tunnel Design - Effectively isolates hot air backflow to stabilize generator operating temperature
  • Full-Perimeter Multi-Point Fixing Holes - Ensures uniform stress distribution to avoid frame deformation under vibration
  • Customizable Fan Opening & Outer Frame Size - Fits silent, open and trailer-type generator sets
Technical Specifications
Item Specification
Product Type Diesel Generator Cooler Fan Shroud Wind Cover
Raw Material 1.4–2.2mm High Temperature Resistant Cold Rolled Steel
Surface Coating Heatproof Blue Polyester Electrostatic Spraying
Matching Fan Diameter 300–550mm Customizable
Heat Resistance Limit Continuous 130°C ambient radiation
Processing Craft Laser Cutting, Integral Bending, Full Perimeter Welding & Spraying
Matched Equipment Silent diesel generator, mobile trailer generator, industrial stationary genset
Operating Environment
Item Requirement
Ambient Temperature Range -35℃ ~ +72℃, long-term nearby engine heat radiation
Relative Humidity 8%–97% with diesel oil mist and dust
Installation Position Front of cooling radiator inside generator unit compartment
Working Condition Continuous low-frequency vibration, long-time heat radiation from diesel engines
Resist Media High-temperature hot air, diesel mist, workshop dust, light rain splash
Product Advantages
  • Material: Heat-resistant thick steel plate avoids softening and deformation under generator long-running heat radiation
  • Craftsmanship: Integral bending forming reduces welding seams, lowering hidden leakage and deformation risks
  • Performance: Square frame and circular wind channel separate hot and cold airflow, preventing generator overheating
  • Quality Control: High-temperature aging test and salt spray anti-corrosion test implemented before delivery
  • Global Applicability: Rich size options meet radiator matching standards of various brands of diesel generators worldwide
Target Markets

Main markets include Southeast Asia, Europe, Middle East, Africa and Oceania. Core customers are diesel generator manufacturers, genset radiator supporting factories, power equipment wholesalers and global standby power aftermarket suppliers.
