Features

Specifications

Raw Material: 3003 High Thermal Conductivity Anti-Corrosion Aluminum Alloy

Single Zone Pressure: 1.5–3.9 MPa

Fin Type: Uniform Horizontal Straight Fin, 22–34 FPI Optional

Max Temperature: 202℃

Ambient Temperature: -41℃ ~ +67℃

Relative Humidity: 11%–97%

Highlight:

vertical split aluminum plate fin heat exchanger

double-zone plate fin heat exchanger

aluminum plate fin heat exchanger components

Basic Infomation

Place of Origin: China

Brand Name: Biala

Payment & Shipping Terms

Packaging Details: Customized packing

Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders

Payment Terms: T/T, L/C

Gallery

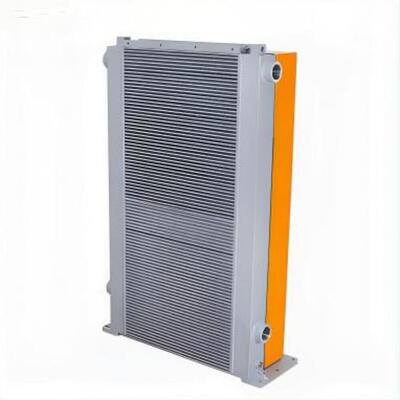

Split Double Zone Parallel Aluminum Evaporator Heat Exchanger Plate Fin Radiator Unit

Product Description

Vertical Split Double-Zone Aluminum Plate Fin Heat Exchanger

Product Overview

This vertical split double-zone aluminum heat exchanger features upper and lower independent fin heat dissipation zones with a gray front frame and orange rear wind guide side plate. The four-corner vertical symmetrical pipe ports layout and integral vacuum brazing create two separated heat exchange areas, complemented by integrated bottom mounting feet for vertical floor installation. The split fin zone design enables graded heat dissipation, making it ideal for high-power hydraulic stations and medium-sized engineering machinery cooling systems, with adjustable partition height and frame color customization.

Features & Highlights

Upper-Lower Split Double Fin Zone Structure for graded heat dissipation to prevent local overheating under heavy continuous load
Dual-Color Separated Frame Design with front gray protective frame and orange wind guide side plate for optimized air gathering
Four-Corner Symmetric Vertical Pipe Ports for balanced medium circulation and stable internal pressure distribution
Integral Bottom L-Shaped Mount Feet for direct ground vertical installation without additional hanging brackets
Independent partition runner design allowing two cooling areas to operate separately or simultaneously as equipment demands

Technical Parameters

Product Type	Vertical Split Double-Zone Aluminum Plate Fin Cooler Core Assembly
Raw Material	3003 High Thermal Conductivity Anti-Corrosion Aluminum Alloy
Single Zone Hydraulic Test Pressure	1.5–3.9 MPa Separate tightness inspection for upper & lower zones
Fin Type	Uniform horizontal straight fin, 22–34 FPI optional
Max Continuous Working Temperature	202℃
Processing Craft	Split fin stacking, integral vacuum brazing, frame electrostatic color spraying
Applicable Medium	Heavy-duty hydraulic transmission oil, medium-pressure compressed air

Operating Environment

Ambient Temperature Range	-41℃ ~ +67℃
Relative Humidity	11%–97% construction factory with mud, dust and hydraulic oil mist
Installation Position	Vertical ground fixed at the side of hydraulic station and engineering equipment host
Working Condition	Long-duration heavy-load operation, periodic peak temperature impact, mild equipment vibration
Environmental Resistance	Dual-color anti-corrosion coating, scratch-resistant, anti-ultraviolet outdoor temporary use

Product Advantages

Material: High heat conduction aluminum fin matching color-coated steel frame, combining excellent heat dissipation and mechanical collision resistance
Craftsmanship: Split double-zone one-time brazing molding eliminates partition leakage risk of post-spliced split coolers
Performance: Graded double heat exchange zones disperse heat load, effectively reducing oil temperature fluctuation during equipment peak operation
Quality Control: Separate pressure test for upper and lower fin zones, coating adhesion and salt spray anti-corrosion test before delivery
Global Applicability: Customizable partition height, frame color and pipe port size to match medium-power hydraulic and engineering machinery OEM cooling demands worldwide

Target Market

Main sales regions cover Southeast Asia, Eastern Europe, Middle East and domestic machinery supporting manufacturers. Core customers include medium-sized hydraulic station producers, loader/excavator auxiliary radiator factories, mechanical equipment system integrators and cross-border heat exchange finished machine distributors.
