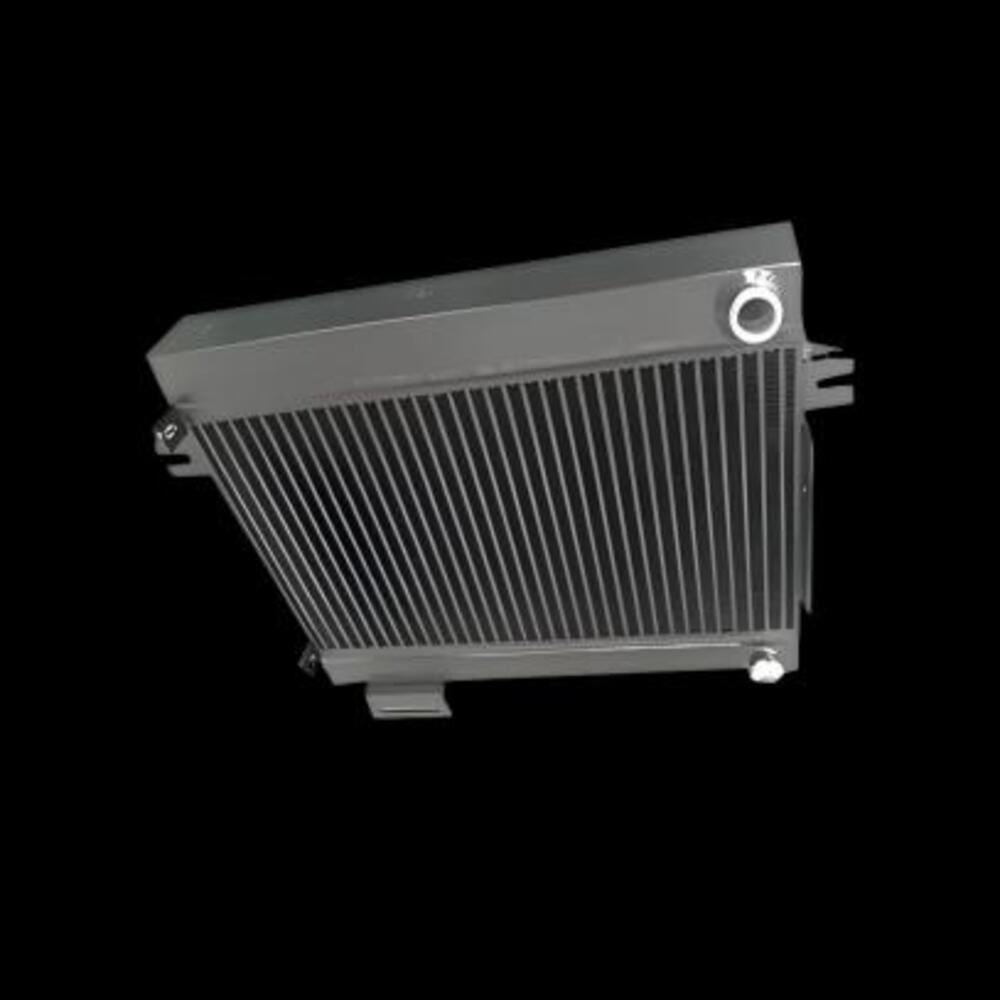

Special Oblique Compact Aluminum Hydraulic Oil Heat Exchanger Plate Fin Cooler Unit

This custom oblique small aluminum plate fin heat exchanger features an inclined integral frame tailored for irregular narrow equipment cabins, with upper and lower single circular pipe joints for single-medium circulation.

• Unique Inclined Oblique Frame Design, perfectly fit irregular slant installation space of compact machinery cabins
• Upper & Lower Single Independent Pipe Ports, simple single-medium circulation pipeline layout with no complex branch lines
• Surround Multi-Position Clamp Mount Brackets, realize embedded clamping fixing without additional support frames
• Dense Vertical Straight Fin Structure, low wind resistance to match small-size axial cooling fans
• Uniform Matte Gray Anti-Corrosion Coating, adapt outdoor mobile equipment with dust and light water splash

• Material: Light thin anti-rust aluminum alloy reduces overall weight, lowering load of small mobile machinery
• Craftsmanship: Integral oblique frame one-time brazing molding avoids deformation risks caused by post-weld splicing of inclined split frames
• Performance: Inclined fin air channel cooperates with slant fan installation to eliminate air dead zone and improve cooling efficiency of narrow cabins
• Quality Control: Full-channel hydraulic leak test and bracket mounting hole precision calibration before finished product delivery
• Global Applicability: Custom oblique tilt angle, overall width and height to meet personalized irregular space cooling demands of mini mobile machinery OEMs worldwide
