Elbow Header Horizontal Fin Aluminum Side Mount Intercooler For OEM Turbo Passenger Cars

Elbow Header Horizontal Fin Aluminum Side Mount Intercooler For OEM Turbo Passenger Cars

1. Product Overview

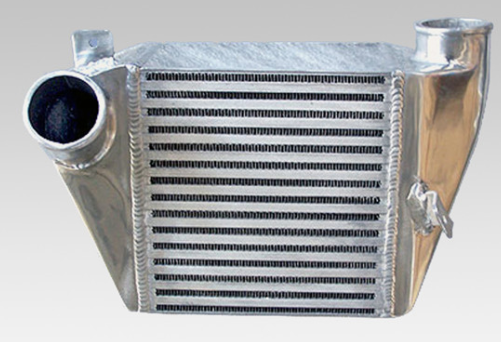

This trapezoidal offset all-aluminum intercooler is matched for factory original turbocharged compact cars, featuring asymmetric unequal-size side end tanks with staggered offset air inlet and outlet elbows. A single integrated hanging lug is cast on the left upper tank, while an auxiliary fixing tab is reserved on the right tank for positioning. Dense horizontal louver turbulent fins are formed by integral vacuum brazing to form a smooth single airflow channel, efficiently cooling turbo hot intake air. The irregular offset tank structure fits the special side-mount limited space of small car engine bays, polished bare aluminum alloy balances lightweight and heat dissipation performance; elbow caliber, tank angle and core size support OEM customized development for specific vehicle models.

2. Core Product Features

1. Asymmetric Offset Dual End Tanks, staggered inlet and outlet elbows adapt the offset pipeline layout of original factory engine compartments, no hose distortion during assembly.

2. Independent Upper Hanging Mount Lug + Auxiliary Side Tab, dual-point positioning installation, effectively prevent core shaking under long-term road vibration.

3. Horizontal Louver Turbulent Fin Matrix, cut airflow laminar flow to improve heat exchange efficiency, lower intake temperature and stabilize turbo power output of factory stock vehicles.

4. Integrated Welded Offset Elbow Nozzles, one-piece forming reduces welding seams, greatly lower air leakage risk under frequent vehicle acceleration and deceleration.

5. Narrow Trapezoidal Core Body, compact volume specially designed for side intercooler installation positions of hatchbacks and small SUVs, no modification required for original vehicle assembly.

3. Standard Technical Parameters

4. Applicable Working Environment

5. Product Competitive Advantages

· Material Advantage: High-toughness thickened offset tank structure, strong anti-collision ability, not easy to deform by gravel splashing during driving.

· Process Advantage: Integral vacuum brazing technology reduces leakage points, solve the common air leakage failure of original vehicle intercoolers after long-term use.

· Layout Advantage: Asymmetric staggered elbow design completely fits the original vehicle pipeline trend, direct OEM assembly without refitting pipeline accessories.

· Quality Control: Each intercooler undergoes full air tightness pressure test; calibration of mounting lug position and nozzle concentricity before factory delivery.

· Global Matching Advantage: Multiple offset trapezoidal size specifications, support exclusive model customized development, meet mass OEM supporting and aftermarket replacement demands of global compact car manufacturers.

6. Target Market & Customer Groups

Main sales regions cover domestic passenger car OEM factories, Southeast Asia, Europe compact car aftermarket auto parts market. Core customers are automobile complete vehicle manufacturers, auto radiator OEM supporting factories, auto parts wholesale distributors and cross-border small turbo vehicle spare parts suppliers.
