Home /Products/Industrial Air To Air Heat Exchanger/Customizable High Purity Aluminum Alloy Industrial Air To Air Heat Exchanger Core Module

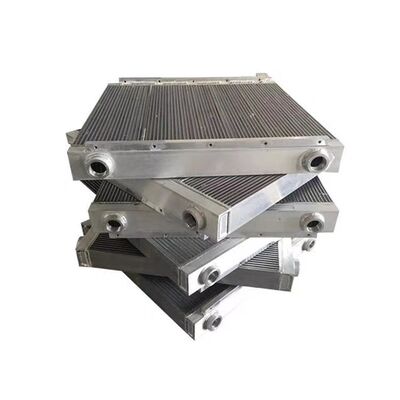

Customizable High Purity Aluminum Alloy Industrial Air To Air Heat Exchanger Core Module

Sample order acceptable
MOQ
Negotiable
Price
Customizable High Purity Aluminum Alloy Industrial Air To Air Heat Exchanger Core Module
Features Gallery Product Description Chat Now
Features
Specifications
Core Material: High-Purity Aluminum Alloy
Working Pressure (Hot): 1.6 MPa
Working Pressure (Cold): 1.0 MPa
Heat Exchange Area: 20-50 M²
Max Temperature: 200°C
Fin Density: 18-36 Fins/inch
Highlight:

Customizable Industrial Air To Air Heat Exchanger

,

Industrial Air To Air Heat Exchanger

,

Customizable air to air heat exchanger industrial
Basic Infomation
Place of Origin: China
Brand Name: Biala
Certification: ISO-9001
Model Number: B-012
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Supply Ability: 10,00 units/year
Product Description

Industrial Air-to-Air Heat Exchanger with High-Purity Aluminum Alloy, 100% Leak-Proof Design, and Customizable Core Dimensions

Industrial Air To Air Heat Exchanger
Providing Heat Exchange Solutions for Industrial Processes and Air Handling Units
Product Description
This high-performance aluminum plate-fin air-to-air cooler is a professional industrial heat exchange solution, designed for efficient cooling of high-temperature process air, compressed air, and exhaust gas in industrial systems. It transfers heat between hot process air and ambient cooling air, effectively lowering gas temperatures, protecting downstream equipment, and improving system efficiency.
Crafted from premium aluminum alloy with advanced vacuum brazing technology, it delivers exceptional thermal conductivity, corrosion resistance, and pressure stability. Each unit undergoes 100% rigorous leak testing to ensure zero failure under demanding industrial conditions. Its compact, robust design enables easy installation and low maintenance, while fully customizable core sizes, fin densities, and connection types ensure seamless integration into diverse industrial processes, providing reliable, long-lasting cooling performance worldwide.

Features & Highlights
  • Air-to-Air Specific Design: Optimized for direct heat exchange between two air streams, no secondary coolant required.
  • Ultra-High Heat Transfer Efficiency: Advanced plate-fin structure maximizes heat dissipation with minimal pressure drop.
  • Heavy-Duty Industrial Durability: High-strength aluminum alloy resists corrosion, vibration, and high-temperature environments.
  • 100% Leak-Proof Reliability: Precision brazing and full pressure testing guarantee safe, long-term operation.
  • Fully Customizable Configuration: Adjustable core dimensions, connections, and cooling capacity to fit specific process requirements.

Technical Parameters
Item Specification
Product Type Industrial Air-to-Air Plate-Fin Cooler / Heat Exchanger
Core Material High-Purity Aluminum Alloy
Design Working Pressure (Hot Air Side) 1.6 MPa (Customizable)
Design Working Pressure (Cold Air Side) 1.0 MPa (Customizable)
Test Pressure 2.4 MPa (Hot Side) / 1.5 MPa (Cold Side)
Heat Exchange Area 20-50 m² (Customizable)
Applicable Media Compressed Air, Process Air, Exhaust Gas
Max Operating Temperature 200°C
Connection Type Flange / Threaded (Customizable)
Fin Density 18-36 fins/inch (Optional)

Operating Environment
Item Requirement
Ambient Temperature Range -40°C ~ +65°C
Relative Humidity 5%-95% (Non-Condensing)
Maximum Operating Altitude ≤ 3000 m (Derating for >3000 m)
Cooling Medium Ambient Air / Forced Air
Installation Condition Well-Ventilated Industrial Site, Dust-Proof
Vibration Resistance Compliant with Industrial Process Standards

Product Advantages
  • Material: High-strength, corrosion-resistant aluminum alloy delivers excellent thermal conductivity and lightweight performance.
  • Craftsmanship: Advanced vacuum brazing technology ensures an integral, seamless structure with 100% leak-proof reliability.
  • Performance: Optimized fin and flow channel design achieves high cooling efficiency with minimal energy loss.
  • Quality Control: 100% factory pressure testing, leak detection, and performance inspection meet international industrial standards.
  • Global Applicability: Fully customizable solutions to fit diverse OEM requirements and regional industrial process applications worldwide.

Target Market
Main target markets include North America, Europe, Southeast Asia, the Middle East, and Oceania. Widely applicable to air compressor systems, industrial process lines, exhaust gas treatment, power generation equipment, petrochemical plants, and general industrial manufacturing, covering both OEM supporting and global after-sales maintenance markets.

SEO Title Options
1. Industrial Aluminum Air-to-Air Plate-Fin Cooler Heat Exchanger for Process Air Cooling
2. High-Efficiency Custom Air-to-Air Cooler for Compressed Air & Exhaust Gas Systems
3. Heavy-Duty Industrial Air-to-Air Heat Exchanger for Power Generation & Petrochemical Plants
Tag:

Industrial Air To Air Heat Exchanger

Air To Air Heat Exchanger
