Combined Large Base Multi Module Aluminum Industrial Air To Air Heat Exchanger Plate Core

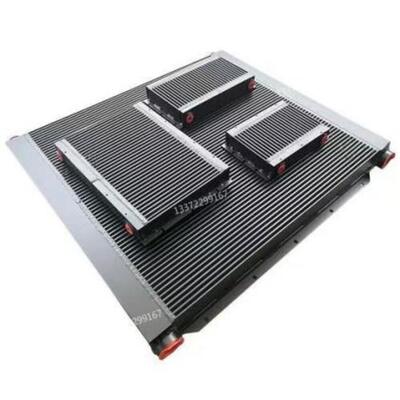

This combined modular aluminum heat exchanger features one large main cooling base matched with multiple independent small auxiliary cooling cores, all utilizing vacuum integral brazing louver fin structure. The large main body includes large-diameter main fluid ports, while small modules feature red protective capped branch ports. The complete set is coated with matte gray anti-rust finish and supports combined multi-medium parallel heat exchange.

Custom-designed for integrated multi-circuit cooling systems of heavy-duty air compressors and large hydraulic units, this solution offers freely configurable module quantity and layout options.

• Split combined main & auxiliary module design enables multi-circuit simultaneous independent cooling without medium mixing
• Integrated large flat main base provides unified air supply surface for all small cooling modules to balance heat dissipation
• Uniform louver turbulent fin structure for both main core and sub-modules ensures consistent high heat exchange efficiency
• Red rubber port protective caps for all branch connectors prevent foreign matter blocking during assembly and storage
• Freely adjustable module layout and number for flexible matching with multi-circuit complex cooling equipment

• Material: High-rigidity thickened aluminum plates for main base and sub-modules resist deformation under overall heavy heat load
• Craftsmanship: Independent brazing for each module avoids cross-circuit leakage risks of integral multi-runner single-core products
• Performance: Unified large air guide base ensures every sub-module obtains equal airflow, eliminating local overheating of individual circuits
• Quality Control: Independent hydraulic tightness inspection for each module, salt spray anti-corrosion test of the whole combined set before delivery
• Global Applicability: Customizable module quantity, placement layout and main base size to satisfy complex multi-circuit cooling OEM demands of large industrial equipment

Main sales regions include Europe, Middle East, Southeast Asia, North America and heavy machinery manufacturing zones. Core customers are large multi-circuit screw air compressor manufacturers, combined hydraulic system integrators, industrial refrigeration equipment factories and bulk complete heat exchange set distributors.
