Home /Products/Plate Fin Heat Exchanger Parts/High Performance Aluminum Alloy Cooling Fan Plate Fin Heat Exchanger Parts IP54 Rated

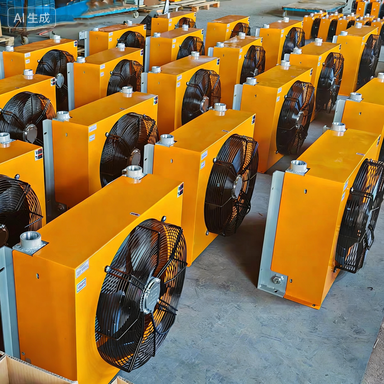

High Performance Aluminum Alloy Cooling Fan Plate Fin Heat Exchanger Parts IP54 Rated

Sample order acceptable
MOQ
Negotiable
Price
High Performance Aluminum Alloy Cooling Fan Plate Fin Heat Exchanger Parts IP54 Rated
Features Gallery Product Description Chat Now
Features
Specifications
Material: Aluminum Alloy Blades + Steel Motor Housing
Rated Voltage: 220V/380V AC (Customizable DC 12V/24V)
Rated Speed: 2800-3600 RPM (Customizable)
Air Volume: 500-2000 M³/h (Customizable)
Protection Grade: IP54
Fan Diameter: 200-500 Mm (Customizable)
Highlight:

IP54 Rated Cooling Fan

,

Aluminum Alloy Cooling Fan

,

High Performance Plate Fin Parts
Basic Infomation
Place of Origin: China
Brand Name: Biala
Certification: ISO-9001
Model Number: P-001
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Supply Ability: 10,00 units/year
Product Description

High-Performance Aluminum Alloy Cooling Fan with IP54 Protection and High Airflow for Heat Exchangers

Air-cooled Variable Speed Cooling Fan
Product Overview
This high-performance aluminum alloy fan assembly is specifically designed as a supporting component for plate-fin heat exchangers, serving as an essential part for air-to-air or air-to-liquid cooling systems. It efficiently generates forced airflow to rapidly dissipate waste heat from the heat exchanger core, ensuring the system maintains stable operating temperatures under high load.
Constructed with industrial-grade aluminum alloy blades and a robust motor housing, the fan delivers high air volume and static pressure while operating quietly and reliably. It features IP54 dust and water resistance, making it suitable for harsh industrial environments. The integrated mounting bracket ensures easy installation and secure alignment with the heat exchanger. Fully customizable in voltage, speed, and air volume, it seamlessly integrates with various heat exchanger models to provide optimal cooling performance across global industrial applications.
Key Features
  • Heat Exchanger Specific: Precision-engineered as the perfect matching cooling fan for plate-fin heat exchangers
  • High Airflow & Static Pressure: Delivers strong forced air to maximize heat dissipation efficiency of the core
  • Industrial Durability: Aluminum alloy blade structure resists deformation and corrosion in harsh workshop conditions
  • Low Noise & Long Life: High-quality bearing motor ensures stable operation with minimal noise and extended service life
  • Easy Installation: Standard bolt-on mounting design for quick assembly with heat exchangers
Technical Specifications
Item Specification
Product Type Plate-Fin Heat Exchanger Cooling Fan / Axial Flow Fan
Material Aluminum Alloy Blades + Steel Motor Housing
Rated Voltage 220V/380V AC (Customizable DC 12V/24V)
Rated Speed 2800-3600 RPM (Customizable)
Air Volume 500-2000 m³/h (Customizable to Match Heat Exchanger)
Protection Grade IP54 (Dust & Water Resistant)
Motor Type High-Efficiency AC/DC Motor
Fan Diameter 200-500 mm (Customizable)
Connection Mode Direct Mounting Bracket
Operating Environment
Item Requirement
Ambient Temperature Range -10°C ~ +60°C
Relative Humidity 10% - 95% (Non-Condensing)
Installation Position Directly Behind Heat Exchanger Core (Air Intake/Exhaust)
Working Environment Industrial Workshop, Construction Machinery, Refrigeration Equipment
Vibration Resistance Compliant with Industrial Vibration Standards
Product Advantages
  • Material: High-purity aluminum alloy blades ensure lightweight, high-strength construction and excellent corrosion resistance
  • Craftsmanship: Dynamic balance testing for fan blades reduces vibration during high-speed operation, ensuring structural stability
  • Performance: Optimized blade angle design maximizes airflow resistance reduction, significantly improving overall cooling efficiency
  • Quality Control: 100% running test and aging test before delivery to guarantee stable motor performance and fan lifespan
  • Global Applicability: Fully customizable specifications to meet various heat exchanger models and international industrial voltage standards
Target Markets
Main target markets include North America, Europe, Southeast Asia, and the Middle East. Widely applicable to heat exchanger manufacturers, air compressor system integrators, refrigeration and HVAC equipment suppliers, construction machinery manufacturers, and global industrial after-sales maintenance markets.
