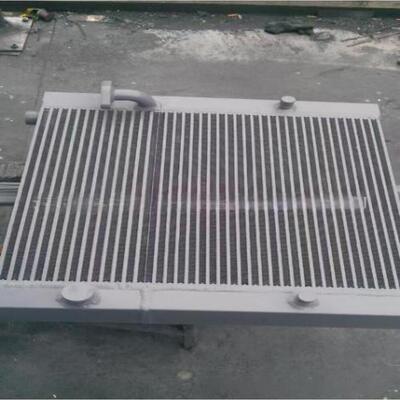

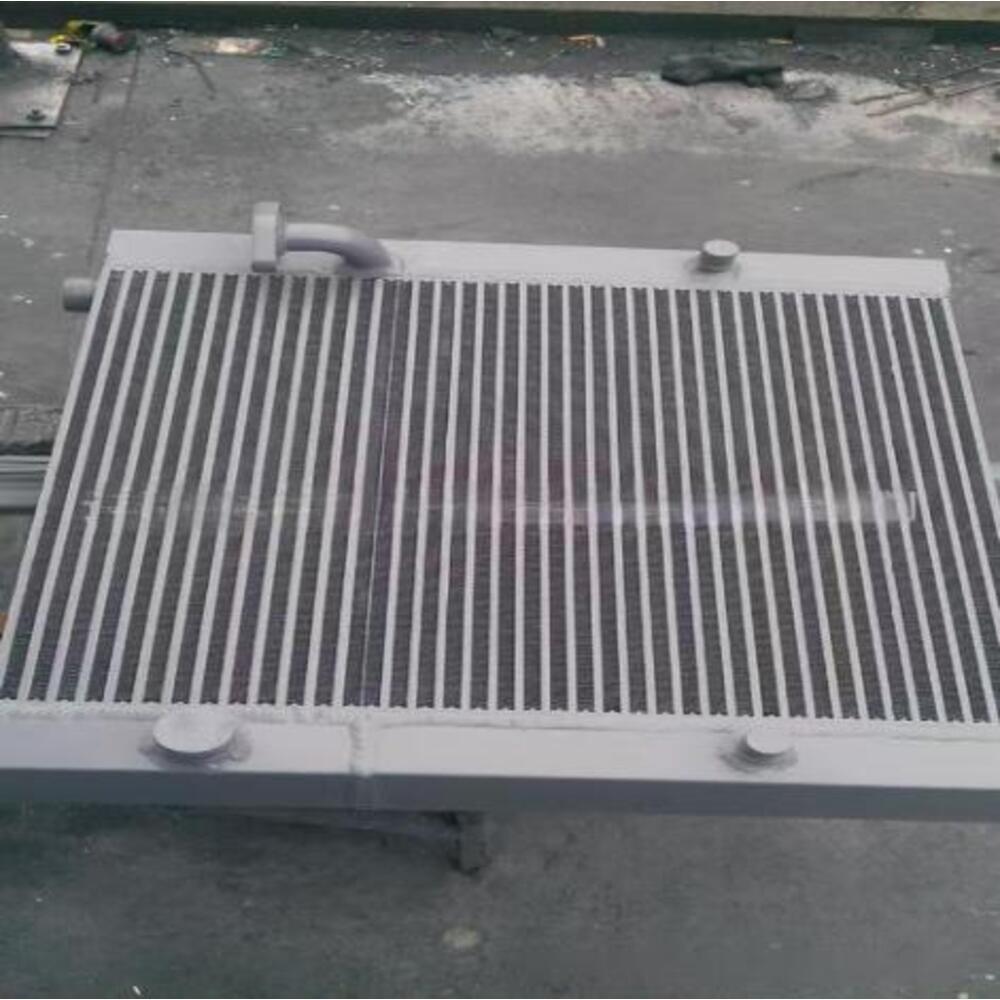

Vertical Single Circuit Aluminum Diesel Engine Heat Exchanger Plate Fin Radiator Assembly

This vertical single-circuit aluminum plate fin heat exchanger is a single-medium independent cooling core featuring vertical dense straight fin layout and thickened aluminum header integral welding. Custom bent pipe connectors and reserved exhaust plugs are preset for easy pipeline installation and air exhausting inside the cavity.

The unit undergoes integral vacuum brazing and overall gray anti-rust spray treatment, featuring stable single-way fluid circulation and strong pressure resistance. Widely applied for hydraulic oil and compressor gas cooling in machinery workshops, with customizable overall height, width and interface specifications.

• Independent Single-Circuit Runner Design, exclusively for single medium cooling without medium mixing risk
• Vertical Straight Uniform Fin Arrangement, smooth air passage to reduce wind resistance and boost heat dissipation
• Integral Thickened Aluminum Header + Bent Pipe Joint, convenient on-site pipeline docking
• Built-In Exhaust Screw Port, quickly empty internal air to avoid heat exchange efficiency drop
• Full Surface Anti-Corrosion Gray Spraying, suitable for damp multi-dust factory workshop environments

• Material: Uniform anti-rust aluminum material balances heat transfer efficiency and long-term workshop anti-corrosion capacity
• Craftsmanship: Independent single runner brazing process avoids cross-flow hidden leakage points of multi-channel cores
• Performance: Vertical straight fins form unobstructed air flue, reducing fan load and lowering equipment power consumption
• Quality Control: Full water pressure leak test and coating adhesion test after overall molding before delivery
• Global Applicability: Adjustable vertical outline size and bent pipe joint dimensions to match single-medium cooling equipment OEM standards worldwide

Main sales regions include Southeast Asia, Europe, North America and the Middle East. Core clients are hydraulic station manufacturers, industrial air compressor factories, general machinery equipment producers and cross-border industrial heat exchange spare parts wholesalers.
