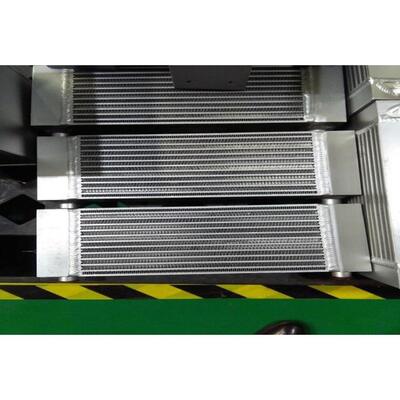

Compact Narrow Horizontal All Aluminum Diesel Engine Heat Exchanger Plate Fin Cooler Unit

This narrow horizontal compact aluminum heat exchanger features bilateral full argon welded thick aluminum headers and dense straight fin core structure. With short vertical pipe connectors at both ends and integrated welding molding that eliminates vacuum brazing processing, the slim body design fits narrow confined equipment compartments. The polished raw aluminum surface requires no extra spraying, providing lightweight construction with high thermal conductivity.

Ideal for small hydraulic power units, mini compressors, and special compact machinery cooling systems, this heat exchanger offers customizable fin density and overall length to match narrow installation space requirements.

• Slim narrow horizontal outline specifically developed for narrow, limited internal equipment installation space
• Full argon arc welded bilateral headers providing stable sealing performance without vacuum brazing procedure
• Dense uniform straight fin layout creating stable airflow channel with low wind resistance for small cooling fans
• Uncoated polished aluminum surface offering lower production cost and excellent natural heat dissipation performance
• Short vertical pipe joint design saving horizontal pipeline layout space inside compact cabinets

• Material: Solid thick aluminum headers improve welding stability, avoiding deformation under light pressure fluctuation
• Craftsmanship: Direct argon welding process simplifies production flow, shortens delivery cycle for small batch orders
• Performance: Slim narrow structure solves space restriction problem of miniaturized complete machine equipment layout
• Quality Control: Each finished core undergoes full water pressure leakage test and welding seam inspection before storage
• Global Applicability: Adjustable length and fin density to satisfy narrow-space cooling matching demand of mini industrial machinery OEMs

Main sales markets cover Southeast Asia, Eastern Europe, and domestic machinery supporting factories. Core customers include mini hydraulic station manufacturers, small air compressor producers, compact automation equipment factories, and small-batch heat exchanger spare parts distributors.
