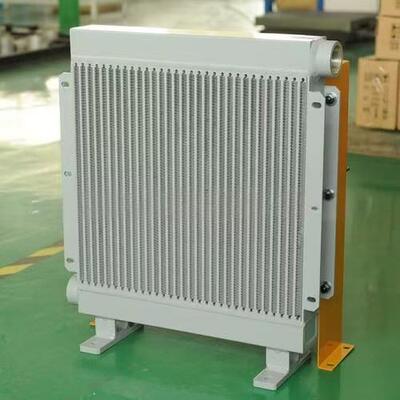

Top Square Flange Single Port Long Strip Vertical Fin Bare Aluminum Condenser Radiator Universal
1. Product Overview
This slender rectangular bare aluminum heat exchanger condenser adopts a single square flange connecting port arranged at the top end face, with full-edge flanging installation plates on the upper and lower sides of the core body. Dense vertical louver fins and internal flow passages adopt integral vacuum brazing technology. The natural bare aluminum surface delivers efficient heat conduction performance, compatible with refrigerant, hydraulic oil, circulating cooling water and glycol mediums. Widely applied to air compressor supporting condensation, industrial refrigeration equipment, general machinery hydraulic heat dissipation and vehicle auxiliary cooling systems. Core length, flange size and mounting hole layout support customized processing based on actual installation drawings.
2. Core Feature Highlights
1. Top square flange single-port structure, large-area flange sealing surface improves connection tightness, effectively prevent medium leakage caused by pipeline vibration and assembly dislocation.
2. Long strip vertical dense fin layout forms long air flue, enhances forced convection heat exchange effect, stable heat dissipation output under high wind speed operating conditions.
3. Upper and lower full surrounding fixed flange plates, multi-hole evenly distributed installation positions, realize uniform stress bearing during long-term equipment vibration, protect internal brazed joints from cracking failure.
4. Integrated one-piece header welding structure reduces welding seams, overall structural rigidity is strong, resistant to impact and pressure fluctuation of the internal medium.
5. Coating-free bare aluminum design eliminates thermal resistance loss, the naturally formed aluminum oxide film can resist conventional atmospheric corrosion, stable heat exchange efficiency for long-term continuous operation.
3. Standard Technical Parameters
|
Item
|
Specification
|
|
Product Model
|
Long Strip Vertical Fin Top Square Flange Bare Aluminum Condenser Radiator
|
|
Raw Material
|
3003 high thermal conductivity thickened anti-pressure aluminum alloy, machined integral square flange
|
|
Internal Channel Pressure Test
|
1.6–2.8 MPa air tightness detection for each finished product
|
|
Fin Form & Density
|
Vertical louver turbulence fin, adjustable range 21–39 FPI
|
|
Maximum Long-Term Working Temperature
|
≤110℃
|
|
Production Process
|
Fin automatic arranging stacking, integral vacuum brazing, header integral welding, flange finish machining
|
|
Applicable Medium
|
Refrigerants for refrigeration systems, hydraulic oil for general machinery, industrial water-based cooling liquid
|
4. Applicable Working Environment
|
Item
|
Requirement Standard
|
|
Ambient Temperature Range
|
-45℃ ~ +78℃
|
|
Relative Humidity
|
4%–97%, suitable for mechanical workshops, air compressor stations, factory refrigeration rooms, general equipment cabins with dust and slight water splash
|
|
Installation Position
|
Flange locking installation on the air outlet channel of air compressors and the cooling air duct of industrial hosts
|
|
Working Condition
|
Long-time uninterrupted stable operation, regular pressure fluctuation of internal medium, low-frequency vibration generated by fans and host equipment
|
|
Environmental Resistance
|
Aluminum natural oxidation layer avoids rusting; regular compressed air blowing can clean fin dust, no chemical reaction with mainstream heat exchange mediums
|
5. Product Competitive Advantages
· Material Advantage: Thickened aluminum integral structure has outstanding pressure resistance and structural stability; bare aluminum without coating barrier improves actual heat exchange efficiency compared with painted radiators of the same specification.
· Process Advantage: Whole-core vacuum brazing greatly reduces internal micro-leakage points, every radiator passes independent high-pressure sealing test before delivery to avoid medium seepage faults in later use.
· Layout Advantage: Upper and lower full-edge flange fixing mode has high general matching performance, directly replace original supporting radiators of most air compressors and industrial refrigeration equipment without modifying mounting supports.
· Quality Control: Each finished product completes channel air tightness test; strictly inspect flange flatness, fin verticality and overall flatness to ensure consistent quality in mass delivery.
· Customization Advantage: Support to adjust radiator length and width, flange aperture, mounting hole spacing and fin density according to user drawings. Factory direct mass supply with complete specifications and formal invoices, suitable for OEM supporting and bulk procurement in refrigeration, compressor, general machinery industries.
6. Target Market & Customer Groups
Main sales regions: Domestic air compressor manufacturers, industrial refrigeration equipment factories, general machinery supporting enterprises, heat exchanger wholesalers; refrigeration spare parts merchants in Southeast Asia, Central Asia and other overseas markets. Core customers: Air conditioner & air compressor radiator supporting factories, industrial refrigeration host manufacturers, mechanical hydraulic cooling component suppliers, refrigeration aftermarket accessory distributors.
SEO Search Title Options
1. Top Square Flange Long Strip Vertical Fin Bare Aluminum Condenser Radiator For Air Compressor & Industrial Refrigeration
2. Full Edge Mounting Plate Vacuum Brazed High Thermal Conductivity Heat Exchanger For General Hydraulic Condensing System
3. Slender Rectangular Anti-Vibration All-Aluminum Condenser Customized For Multiple Industrial Cooling Equipment
