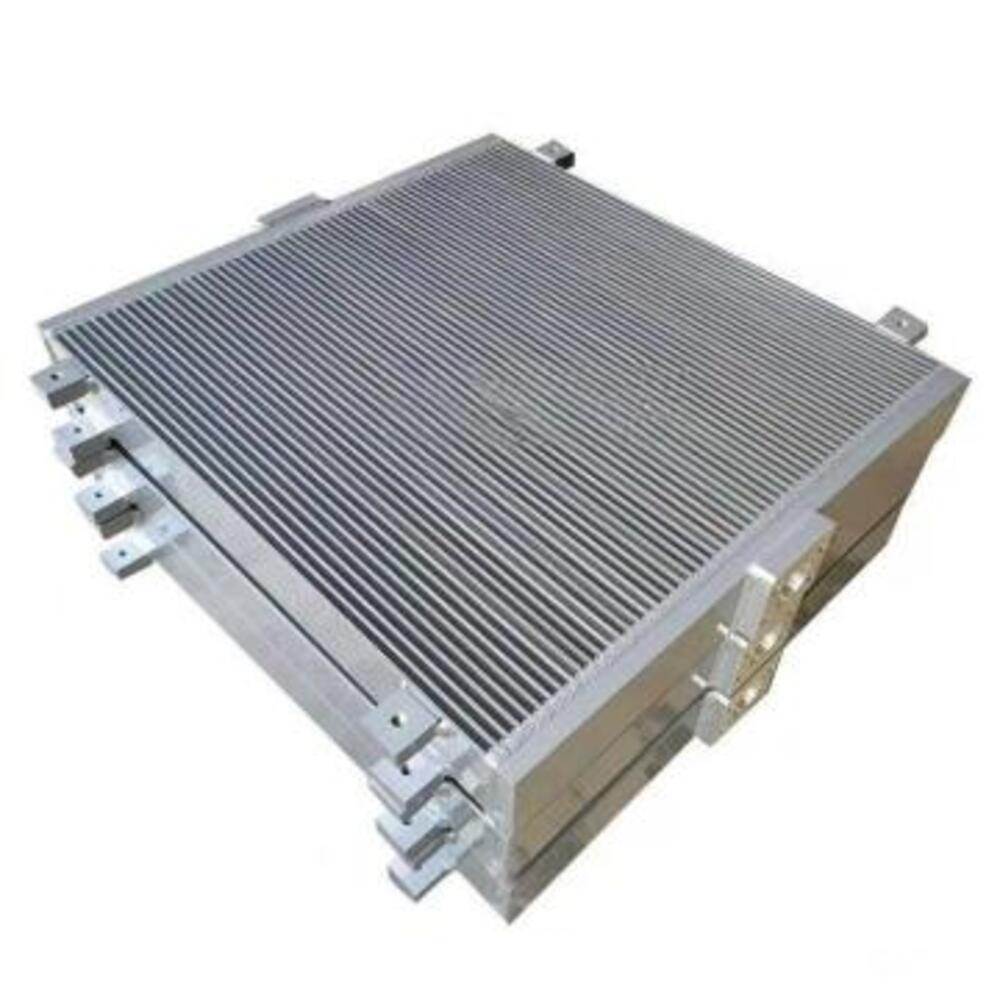

Aluminum Plate Fin Heat Exchanger Bar Plate Heat Exchanger

Product Description

Aluminum Plate Fin Heat Exchanger Bar Plate Heat Exchanger

All Aluminum Plate Fin Heat Exchanger

Product Overview

This integrated all-aluminum plate fin heat exchanger features a multi-flow channel layered composite structure, manufactured from anti-rust aluminum alloy through integral vacuum brazing. Multiple independent flow ports enable simultaneous heat exchange between two or three media types including hydraulic oil, compressed air, and coolant. The design incorporates multiple fixing lugs for equipment assembly, offering a compact, lightweight solution with high heat exchange density. Widely compatible with air compressors, construction machinery, and new energy equipment cooling systems, with fully customizable dimensions and runner layouts.

Features & Highlights

Multi-Runner Composite Design: Enables simultaneous heat exchange of two or three different media in a single core
Integral Vacuum Brazing Molding: Ensures no internal leakage under long-term alternating pressure impact
High-Density Thin Fin Layout: Significantly improves heat transfer efficiency while reducing overall equipment volume
Multiple Integrated Mounting Lugs: Allows direct bolt fixing without additional support frames
Customizable Configuration: Tailored runner quantity, port positions, and overall outline dimensions for exclusive OEM cooling solutions

Technical Parameters

Item	Specification
Product Type	Multi-Runner All Aluminum Plate Fin Heat Exchanger Core
Raw Material	3003 Anti-Corrosion Aluminum Alloy Plate & Fin
Single Channel Test Pressure	1.6–4.2 MPa Separately Testable
Fin Thickness	0.12–0.35mm Ultra-Thin High-Conductivity Fin
Max Continuous Working Temperature	210℃
Processing Technology	Stacking Assembly + Integral Vacuum Brazing + CNC Port Machining
Applicable Media	Compressed air, hydraulic oil, glycol coolant, refrigerant

Operating Environment

Item	Requirement
Ambient Temperature Range	-45℃ ~ +70℃
Relative Humidity	5%–96% non-condensing environment
Installation Position	Inside cooling equipment, matched with fan shroud assembly
Working Condition	Alternating pressure fluctuation, continuous heat exchange operation
Environmental Adaptability	Dust-proof, anti-oxidation, weak medium corrosion resistance

Product Advantages

Material: Low-density anti-rust aluminum alloy achieves lightweight design while maintaining optimal heat conduction performance
Craftsmanship: One-time integral brazing eliminates internal assembly gaps and prevents cross-medium mixing risks
Performance: Multi-layer thin fin dense structure enables miniaturized high-power heat dissipation, saving valuable equipment space
Quality Control: Independent hydraulic leak testing for each runner and comprehensive dimensional inspection prior to delivery
Global Applicability: Diverse multi-runner layouts meet multi-medium cooling requirements for various industrial equipment OEMs worldwide

Target Markets

Core sales regions include Europe, Southeast Asia, North America, Middle East, and Africa. Primary customers comprise air compressor manufacturers, construction machinery supporting factories, new energy equipment enterprises, and global industrial heat exchange spare parts distributors.
