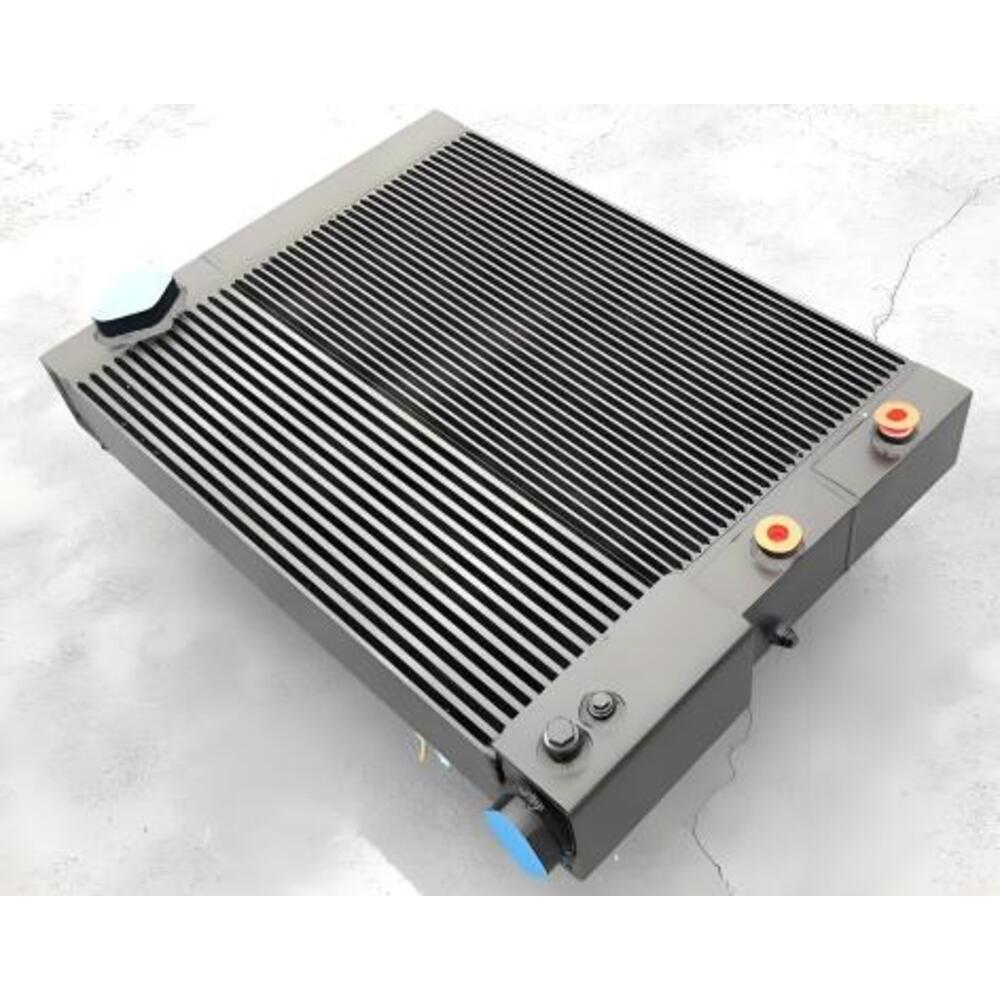

Multi Port Integrated Aluminum Plate Fin Heat Exchanger 1.6–4MPa

This advanced heat exchanger features independent separated flow chambers with oil ports, air ports, and drain/vent screw holes integrated on the same side frame. Utilizing compact louvered heat exchange fins and integral vacuum brazing technology, the unit is finished with matte dark gray anti-corrosion spraying for superior durability.

• Same-Side Multi-Port Integrated Design for centralized pipeline layout and simplified internal equipment wiring
• Built-In Vent & Drain Screw Ports for convenient maintenance and regular servicing
• Louvered Turbulent Fins that break airflow boundary layers to significantly enhance heat transfer efficiency
• Separated Independent Flow Chambers ensuring oil and air dual-medium separate cooling without cross leakage
• Matte Dark Gray Protective Coating providing wear-resistant and anti-fouling properties for long-term workshop use

• Material: Special anti-corrosion aluminum alloy maintains stable performance under long-term oil mist erosion inside equipment cabinets
• Craftsmanship: Separated runner integral brazing process eliminates hidden risks of medium intermixing
• Performance: Louver fin turbulence structure reduces heat exchange volume for miniaturized dual-medium integrated cooling
• Quality Control: Independent pressure testing for each runner and full appearance coating inspection before factory delivery
• Global Applicability: Customizable multi-port layout and overall size to match integrated cooling system standards worldwide

Main sales regions cover Europe, Southeast Asia, North America, the Middle East and Oceania. Core customers include industrial screw air compressor manufacturers, integrated hydraulic station factories, pneumatic equipment supporting suppliers, and global industrial heat exchange spare parts distributors.
