Horizontal Double Port Aluminum Plate Fin Heat Exchanger

Product Description

Horizontal Double Port Aluminum Plate Fin Heat Exchanger

Horizontal Double-Port Aluminum Plate Fin Heat Exchanger

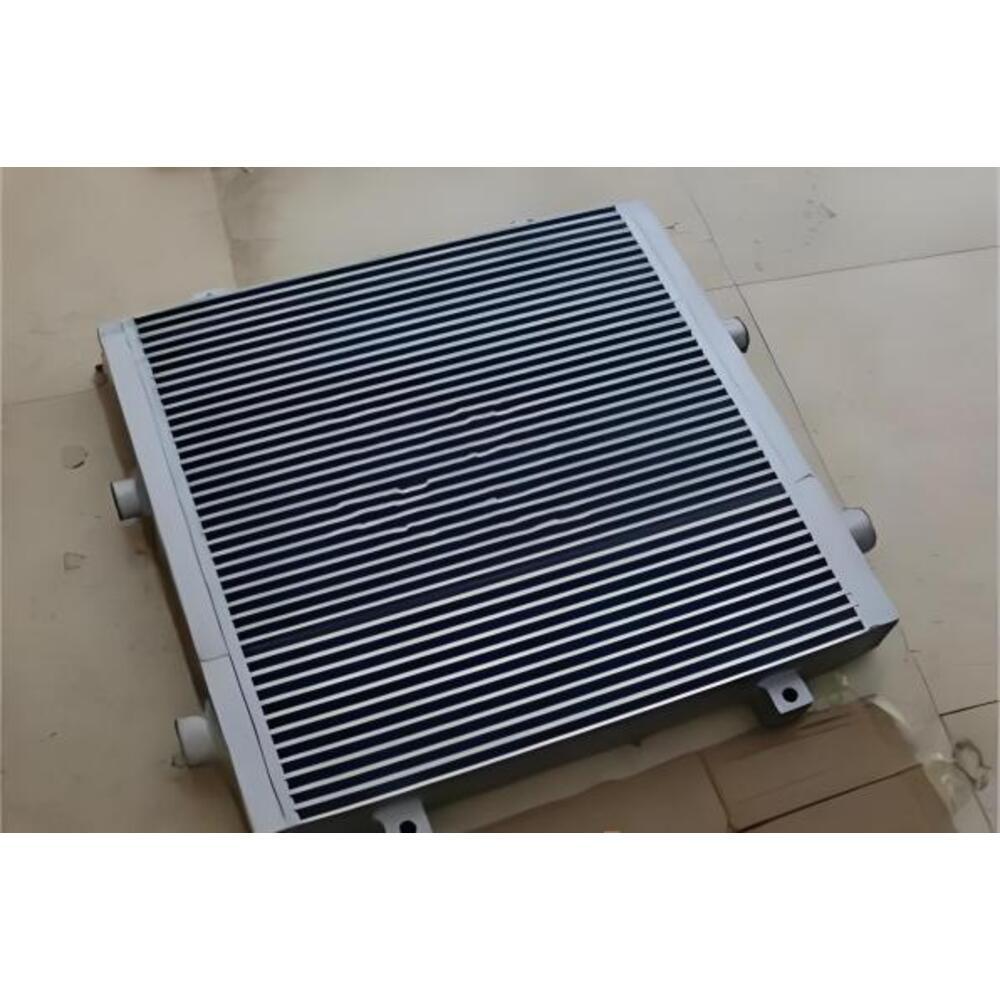

This horizontal flat aluminum plate fin heat exchanger features a bilateral symmetric flow channel layout with four-way external pipe connectors, designed to work with horizontal fan cooling assemblies. The flat compact thin fin structure maximizes heat exchange area within limited horizontal installation space.

Product Features

Horizontal Flat Thin Fin Layout – ideal for horizontal built-in installation in narrow equipment cabinets
Bilateral Symmetric Double Inlet & Outlet Ports – convenient for left-right bidirectional pipeline layout design
Four-Corner Integrated Mounting Lugs – stable horizontal suspension fixing without auxiliary brackets
Ultra-Flat Compact Body – effectively saves vertical internal space of complete machine equipment
Fully customizable core thickness, pipe interface size and overall horizontal outline dimension

Technical Specifications

Product Type	Horizontal Flat Bilateral Port Aluminum Plate Fin Cooler Core
Raw Material	3003 Anti-Oxidation Aluminum Alloy Fin & Side Plate
Hydraulic Test Pressure	1.4–3.5 MPa Full-channel leak inspection
Fin Form	Horizontal parallel plain fin, 18–34 FPI optional
Continuous Allowable Working Temperature	200℃
Processing Technology	Fin lamination, integral vacuum brazing, CNC pipe port processing
Applicable Medium	Compressed air, hydraulic transmission oil, industrial cooling liquid

Operating Environment

Ambient Temperature Range	-42℃ ~ +68℃
Relative Humidity	8%–94% dust-containing mechanical workshop environment
Installation Position	Horizontal suspension inside equipment cabinet, matched with horizontal axial fan
Working Condition	Long-term stable medium circulation, low-frequency mechanical vibration
Environmental Resistance	Dustproof, anti-rust, resistant to light oil mist erosion

Product Advantages

Material: Low-density anti-rust aluminum alloy enables ultra-flat lightweight design, reducing overall equipment load
Craftsmanship: One-time integral brazing eliminates internal splicing gaps and hidden leakage risks under horizontal vibration
Performance: Horizontal parallel fins form smooth horizontal air flue, matching horizontal air supply of fans to maximize heat exchange efficiency
Quality Control: Full-channel hydraulic leak test and four-corner mounting hole precision calibration before leaving factory
Global Applicability: Multiple horizontal size specifications meet the horizontal layout cooling matching demands of various industrial equipment OEMs worldwide

Target Markets

Main sales regions cover Southeast Asia, Europe, North America, Middle East and Oceania. Core customers include industrial air compressor manufacturers, construction machinery supporting factories, hydraulic station equipment producers and global heat exchange spare parts cross-border distributors.
