Six Point Symmetric Left Vertical Triple Port Horizontal Air Compressor Heat Exchanger

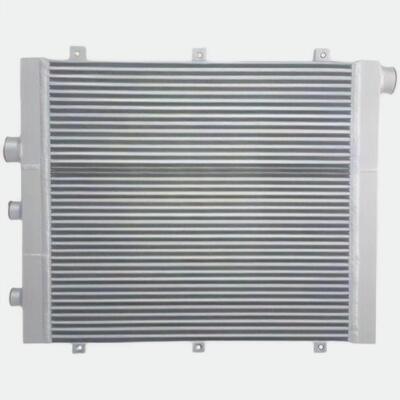

This rectangular standard aluminum cooling core is designed for universal full-series screw air compressors. It features six evenly distributed upper and lower independent mounting lugs for balanced suspension installation. Three vertically layered fluid ports are concentrated on the left header, with a single large air outlet nozzle arranged on the right side plate. Dense horizontal parallel fins are formed by integral vacuum brazing to create mutually isolated oil circulation and air cooling dual flow channels, enabling integrated dual-medium heat dissipation in one unit.

• Six-Point Symmetric Upper & Lower Mount Lugs: Six-point uniform stress bearing greatly reduces vibration looseness risk during long-term continuous operation
• Left Side Vertical Triple Layer Stacked Ports: All lubricating oil pipelines are concentrated on the left vertical header with orderly layered layout
• Independent Single Large Air Outlet on Right Side: Separate air passage layout to completely distinguish oil and gas circuits
• Dense Uniform Horizontal Straight Fin Matrix: Low airflow resistance to reduce operating power consumption of matched cooling fans
• Fully Separated Oil-Gas Independent Flow Channels: Thoroughly eliminate medium cross-mixing and prevent lubricating oil emulsification

• Material Advantage: Thickened integrated aluminum frame and bilateral headers improve overall structural rigidity
• Process Advantage: One-time integral vacuum brazing eliminates split welding leakage joints
• Layout Advantage: Six-point symmetric mounting structure achieves uniform stress dispersion
• Quality Control: Each flow channel undergoes independent high-pressure hydraulic leak testing
• Global Matching Advantage: Complete standard rectangular size series with non-standard personalized size adjustment

Main sales regions include Southeast Asia, Eastern Europe, North America, Middle East and domestic general industrial air compressor complete machine factories. Core clients are full-series universal screw air compressor manufacturers, compressor radiator bulk supporting suppliers, industrial pneumatic system integrators and cross-border compressor aftermarket spare parts wholesalers.

• Six-Point Symmetric Mount Lug Left Vertical Triple Port Horizontal Fin Aluminum Cooler for General Screw Air Compressor
• Separated Right Side Air Outlet Vacuum Brazed Oil-Gas Combined Heat Exchanger Core
• Universal Standard Rectangular All-Aluminum Compressor Radiator With Multi-Point Anti-Vibration Mount Structure
