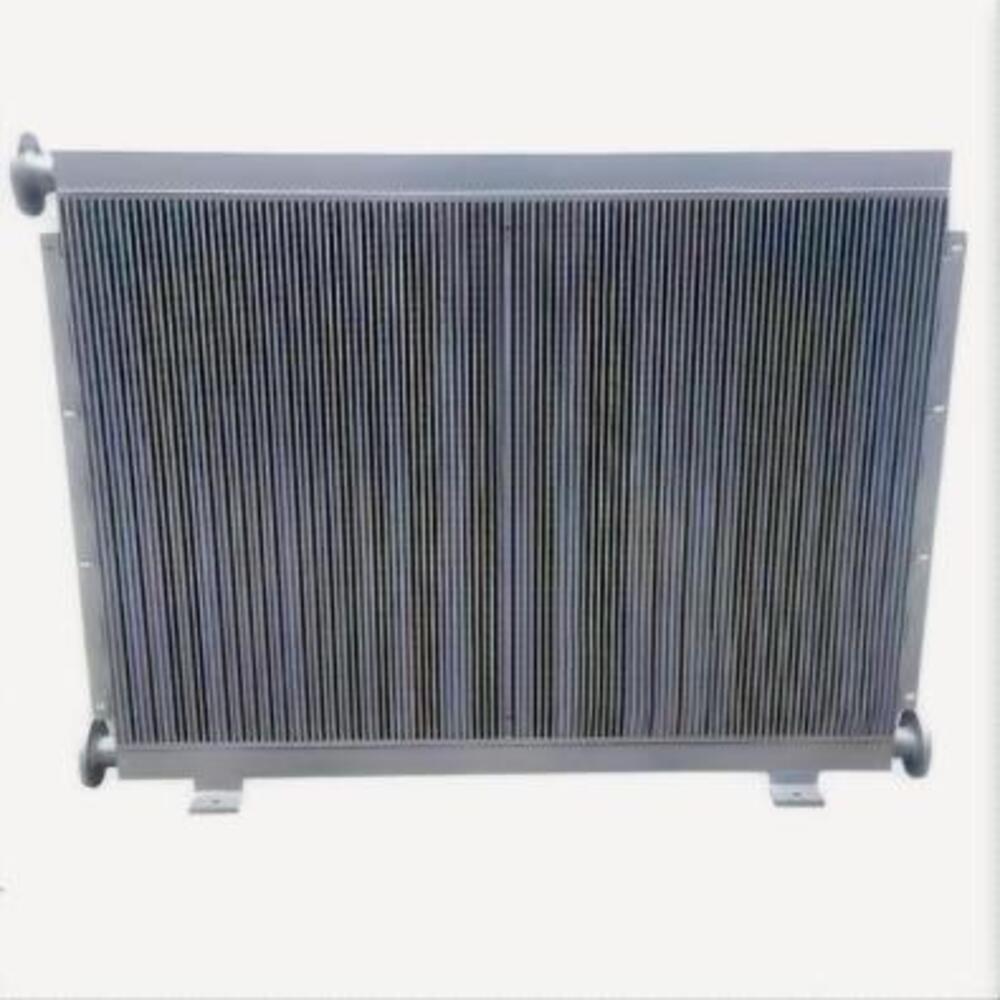

Horizontal Double Side Symmetric Large Diameter Aluminum Air Compressor Heat Exchanger

Product Description

Horizontal Fin Double Side Symmetric Large Diameter Interface Bottom Dual Foot Mount Aluminum Heat Exchanger For New Energy Equipment Full Specification

Horizontal Fin Double Side Symmetric Large Diameter Interface Bottom Dual Foot Mount Aluminum Heat Exchanger

Designed for new energy equipment with full specification customization capabilities.

Product Overview

This wide rectangular all-aluminum air-cooled heat exchanger is specifically customized for new energy construction machinery, battery energy storage integrated stations, new energy loaders, and electric excavator hydraulic & power battery cooling systems. It features fully symmetrical left-right horizontal large-diameter pipe joints and two independent flat supporting feet welded at the bottom for stable horizontal placement.

Ultra-dense vertical serrated heat exchange fins are integrally vacuum brazed with internal low-resistance flow channels, matching ethylene glycol cooling liquid circulation of new energy thermal management systems. The wide flat core provides sufficient heat exchange area to stabilize battery temperature and hydraulic oil temperature under long-time low-noise operation of electric engineering equipment.

Core Feature Highlights

Bilateral Fully Symmetric Horizontal Equal-Diameter Liquid Interfaces for bidirectional reversible liquid inlet and outlet layout
Bottom Dual Independent Flat Support Feet for horizontal stable bearing design
Ultra-Dense Vertical Serrated Turbulent Fin Matrix with ultra-large heat exchange area
Integral Thickened Welded Header Frame with full vacuum brazing
Wide Flat Integrated Core Structure with modular standardized sizing

Standard Technical Parameters

Item	Specification
Product Model	New Energy Electric Construction Machinery & Energy Storage Horizontal Fin Symmetric Dual Port Aluminum Liquid Cooling Heat Exchanger
Raw Material	3003 lightweight high anti-corrosion aluminum alloy
Internal Flow Channel Pressure Test	1.5–2.6 MPa full liquid tightness inspection
Fin Form & Density	Vertical serrated turbulence fin, 24–42 FPI adjustable
Max Long-Term Continuous Working Temperature	≤95℃
Production Process	Fin automatic stacking, integral vacuum brazing, header integral welding
Applicable Medium	New energy thermal management ethylene glycol coolant, electric construction machinery hydraulic oil

Applicable Working Environment

Item	Requirement Standard
Ambient Temperature Range	-40℃ ~ +70℃
Relative Humidity	5%–95% in new energy workshop, outdoor charging station environments
Installation Position	Horizontal bottom support fixed installation inside new energy electric vehicle cabin
Working Condition	Long-time stable low-noise continuous operation with low-amplitude vibration
Environmental Resistance	Natural aluminum anti-oxidation performance, easy to clean with compressed air

Product Competitive Advantages

Material Advantage: Lightweight thickened aluminum integrated structure reduces overall vehicle load
Process Advantage: Full vacuum brazing eliminates internal micro leakage and scaling
Layout Advantage: Fully symmetrical bidirectional interface design improves production versatility
Quality Control: Comprehensive high-pressure tightness testing and calibration before delivery
Customization Advantage: Adjustable core width, pipe caliber, support foot spacing and fin density

Target Market & Customer Groups

Main sales regions include domestic new energy electric engineering machinery OEM factories, energy storage equipment supporting manufacturers, new energy vehicle thermal system enterprises, and overseas new energy construction equipment spare parts merchants in Europe and Southeast Asia.

Core customers: Electric excavator/electric loader complete vehicle factories, energy storage cabinet cooling system supporting factories, and new energy thermal management component manufacturers.
