Composite Four Side Multi Point Mount Vertical Fin Aluminum Air Compressor Heat Exchanger

Sample order acceptable
MOQ
Negotiable
Price
Composite Four Side Multi Point Mount Vertical Fin Aluminum Air Compressor Heat Exchanger
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 3003 Thickened High Toughness Anti-rust Aluminum Alloy, Pressure-resistant Welded Pipeline
Internal Oil Channel Pressure Test: 2.0–3.0 MPa Full Oil Tightness Inspection For Each Finished Cooler
Fin Form & Density: Vertical Serrated Turbulence Fin, 20–32 FPI Adjustable
Max Continuous Working Temperature: ≤120℃
Ambient Temperature Range: -48℃ ~ +82℃
Relative Humidity: 3%–100% Harsh Construction Site Environment With Mud, Dust, Rain, Gravel Impact And Vibration
Highlight:

multi point mount oil cooler

,

composite aluminum hydraulic oil cooler

,

construction machinery oil cooler
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

Four-Side Multi-Point Mount Vertical Fin Composite Aluminum Hydraulic Oil Cooler For Construction Machinery Full Specification

Four-Side Multi-Point Mount Vertical Fin Composite Aluminum Hydraulic Oil Cooler For Construction Machinery Full Specification
Product Overview

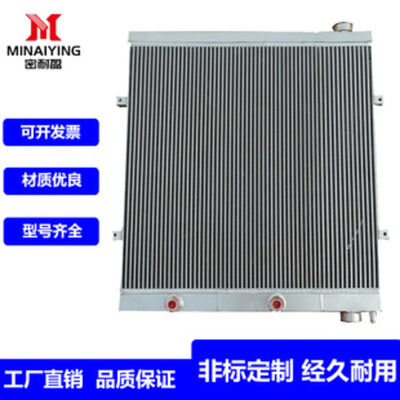

This square vertical fin all-aluminum composite cooler is specially developed for excavators, loaders, road rollers and other heavy construction machinery hydraulic heat dissipation systems. The entire frame features four groups of symmetrical mounting lugs on all sides, with a main oil inlet and outlet joint at the bottom right, and two red protective plug reserved interfaces on the lower header for pressure detection and exhaust.
Dense vertical serrated turbulence fins are integrally vacuum brazed with flow channels to form a double heat exchange structure of hydraulic oil internal circulation and external air forced heat dissipation, which quickly removes heat generated by high-load hydraulic systems of engineering vehicles. The thickened integral aluminum frame provides strong anti-collision performance and supports non-standard customized sizes, joint calibers, and fin density according to different construction machinery models.
Core Feature Highlights
  • Four-Side Multi-Point Symmetric Mount Lugs: Multi-direction adjustable installation positions adapt to various limited installation spaces in engineering machinery cabs and engine compartments
  • Bottom Dual Red Sealed Auxiliary Interfaces: Convenient for on-site pressure testing and pipeline exhaust, effectively preventing air blockage that leads to hydraulic high temperature alarms
  • High-Density Vertical Serrated Turbulent Fin Array: Breaks boundary layer airflow to improve heat exchange efficiency, providing stable cooling under long-time heavy-load continuous operation
  • Thickened Integrated Welded Header Assembly: Reduces oil leakage welding points and resists long-term severe vibration in construction machinery working conditions
  • Large Square Standard Core Body: Large heat exchange area effectively controls hydraulic oil temperature under high pressure, heavy load, and continuous construction operation
Standard Technical Parameters
Item Specification
Product Model Construction Machinery Four-Side Mount Vertical Fin Aluminum Hydraulic Oil Cooler
Raw Material 3003 thickened high toughness anti-rust aluminum alloy, pressure-resistant welded pipeline
Internal Oil Channel Pressure Test 2.0–3.0 MPa full oil tightness inspection for each finished cooler
Fin Form & Density Vertical serrated turbulence fin, 20–32 FPI adjustable
Max Continuous Working Temperature ≤120℃
Production Process Fin automatic stacking, integral vacuum brazing, full frame multi-lug integrated welding forming
Applicable Medium High-temperature hydraulic circulating oil of excavators, loaders, road rollers and other engineering equipment
Applicable Working Environment
Item Requirement Standard
Ambient Temperature Range -48℃ ~ +82℃
Relative Humidity 3%–100% harsh construction site environment with mud, dust, rain, gravel impact and vibration
Installation Position Fixed installation on engine compartment, hydraulic pump side of various construction machinery
Working Condition Long-time continuous heavy load operation, strong mechanical vibration, frequent start-stop, instantaneous high hydraulic pressure impact
Environmental Resistance Natural aluminum anti-oxidation, vertical fin gap not easy to stick thick mud, can be cleaned with high-pressure water gun on construction site
Product Competitive Advantages
  • Material Advantage: Thickened aluminum frame and header provide strong impact resistance, preventing dents and oil leaks from gravel splashes on construction sites
  • Process Advantage: Overall vacuum brazing forming reduces welding seams, significantly lowering oil leakage failure rates in engineering machinery hydraulic cooling systems
  • Layout Advantage: Four-sided multi-direction mounting lugs enable flexible installation without vehicle frame modifications, allowing direct replacement for original equipment
  • Quality Control: Every cooler undergoes full oil channel pressure tightness testing with mounting hole position and thread concentricity calibration before factory delivery
  • Customization Advantage: Supports non-standard sizes, joint threads, and interface position personalization with factory direct supply, complete specifications, and formal invoicing for bulk procurement
Target Market & Customer Groups
Main Sales Markets: Domestic construction machinery OEM factories, engineering vehicle maintenance stations, construction machinery parts wholesalers, cross-border engineering machinery spare parts merchants in Southeast Asia, Africa and Central Asia.
Core Customers: Excavator/loader complete machine manufacturers, engineering machinery radiator supporting factories, construction equipment repair enterprises, bulk auto parts distributors.
SEO Search Title Options
  • Four-Side Multi-Point Mount Vertical Fin Aluminum Hydraulic Oil Cooler For Excavator Loader Construction Machinery
  • Bottom Dual Auxiliary Test Interface Vacuum Brazed Heavy-Duty Engineering Machinery Heat Exchanger
  • Large Square Pressure-Resistant All-Aluminum Cooler Customizable For Road Roller Engineering Equipment Hydraulic System
