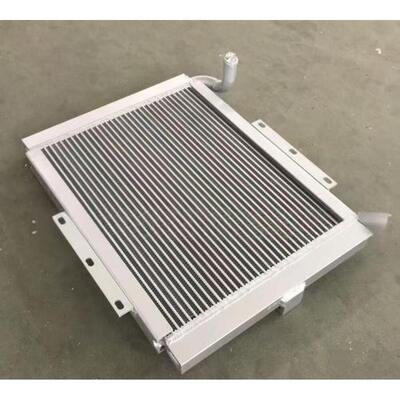

Bilateral L Shaped Mount Plate Single Side Curved Elbow Air Compressor Heat Exchanger

This square bare aluminum air-cooled heat exchanger is specifically designed for thermal management systems in miniature electric excavators, battery-driven aerial work platforms, small electric forklifts, and portable integrated energy storage equipment. It features two symmetrical L-shaped mounting brackets for horizontal clamping installation and includes a single upward bent 90° elbow pipeline joint with a horizontal straight outlet to form a complete coolant circulation loop.

The unit utilizes dense vertical serrated turbulence fins and internal flow channels created through integral vacuum brazing, making it compatible with low-viscosity ethylene glycol cooling fluid. This design effectively dissipates heat generated by small power battery packs, low-power drive motors, and miniature hydraulic systems during intermittent light-load operation of compact new energy equipment.

• Material Advantage: Pure bare aluminum lightweight structure with no coating thermal barrier for higher heat exchange efficiency and reduced vehicle load
• Process Advantage: Integral vacuum brazing eliminates internal micro-leakage risks with smooth flow channels that resist scaling
• Layout Advantage: Bilateral L-type bracket with flexible multi-hole installation compatible with multiple equipment models
• Quality Control: Comprehensive testing including high-pressure tightness, bracket parallelism, and core flatness verification
• Customization Advantage: Adjustable core width, elbow caliber, bracket hole distance, and fin density with factory direct supply

Primary markets include domestic miniature electric excavator and aerial work platform OEM manufacturers, portable energy storage equipment factories, small new energy vehicle thermal management component suppliers, and Southeast Asia light electric construction machinery spare parts merchants.

Core customers: Mini electric engineering vehicle manufacturers, small battery cooling system producers, and light new energy hydraulic radiator supporting enterprises.
