Upper Bolted Frame Dual Left Vertical Port Black Coated Air Compressor Heat Exchanger

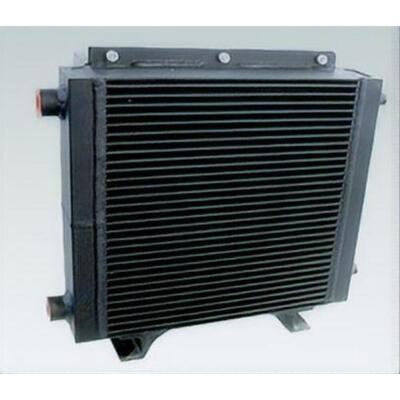

This square matte black coated aluminum heat exchanger is specifically designed for medium cabinet energy storage systems, fixed electric hydraulic test stations, medium electric forklifts, and low-power hydrogen fuel cell auxiliary cooling equipment. It features a three-bolt detachable top fixing frame, two vertically aligned liquid pipe ports on the left side with red sealing protection rings, and two integrated bending support feet for stable vertical placement.

The unit incorporates dense horizontal louver turbulence fins and internal coolant flow channels that are integrally vacuum brazed. It is compatible with ethylene glycol cooling liquid and fuel cell deionized water, providing continuous heat dissipation for energy storage battery clusters, PCS power conversion modules, and electric hydraulic power units during long-term stable static operation.

• Three-Bolt Detachable Top Fixed Frame - Split bolt locking design allows convenient disassembly without damaging the core body
• Left Vertical Double Liquid Ports with Red Sealing Rings - Upper and lower symmetrical layout with enhanced sealing against vibration and thermal expansion
• Dual Integral Bending Bottom Support Feet - Thickened one-piece stamping for strong vertical bearing capacity and vibration isolation
• High-Density Horizontal Low-Wind-Resistance Louver Fin Matrix - Layered staggered fin structure for high heat exchange efficiency at low fan speeds
• Full Matte Black High-Temperature Anti-Corrosion Coating - Dense isolation layer protecting against dust, moisture, and weak electrolyte corrosion

• Material Advantage: Thickened aluminum core with full anti-corrosion coating provides strong anti-collision and anti-aging performance
• Process Advantage: Integral vacuum brazing eliminates internal micro leakage, dual vertical liquid ports pass independent high-pressure tightness tests
• Layout Advantage: Detachable top bolt frame facilitates post-installation maintenance; dual bottom support feet enable self-standing installation
• Quality Control: Each unit undergoes full liquid channel high-pressure tightness testing and dimensional calibration
• Customization Advantage: Adjustable bolt spacing, liquid port caliber, support foot height, and fin density to match cabinet thermal management requirements

Primary sales regions include domestic medium cabinet energy storage equipment manufacturers, fixed electric hydraulic test equipment supporting factories, low-power fuel cell cooling component suppliers, and Southeast Asia commercial energy storage spare parts merchants.

Core customers: Medium energy storage cabinet complete machine factories, electric hydraulic station thermal management supporting enterprises, low-power fuel cell auxiliary cooling system manufacturers.
