Large Rectangular Square Flange Top Single Port Vertical Plate Fin Tube Heat Exchanger

Sample order acceptable
MOQ
Negotiable
Price
Large Rectangular Square Flange Top Single Port Vertical Plate Fin Tube Heat Exchanger
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 3003 Extra Thick High Toughness Impact-resistant Anti-corrosion Aluminum Alloy
Air Channel Tightness: 1.1–2.2 MPa Full Air Tightness Pressure Inspection
Fin Type & Density: Vertical Louver Turbulence Fin, 16–28 FPI Adjustable
Max Operating Temperature: ≤200℃
Ambient Temperature Range: -50℃ ~ +85℃
Relative Humidity: 2%–100% Harsh Mine & Construction Site Environment
Highlight:

Large plate fin tube heat exchanger

,

Vertical plate fin tube heat exchanger

,

Rectangular plate finned tube heat exchanger
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

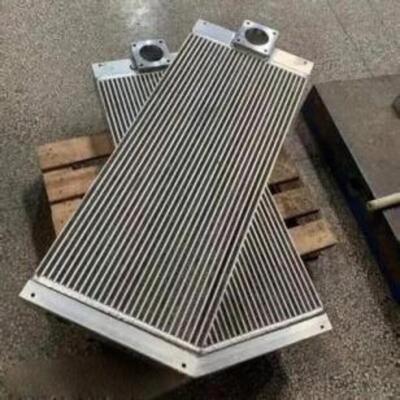

Large Rectangular Square Flange Top Single Port Vertical Plate Fin Tube Heat Exchanger

Large Rectangular Square Flange Top Single Port Vertical Fin Air Cooler
Product Overview
This oversized rectangular all-aluminum air cooling heat exchanger is designed for large excavators, heavy loaders, mining machinery, and large road construction equipment turbo intercooling systems. It features a single square flange air inlet/outlet mounted on the top edge of the core frame, with full-edge perforated mounting plates on all four sides. Dense vertical louver turbulent fins are integrally vacuum brazed to form large-flow air channels, efficiently cooling high-temperature compressed air from large-displacement turbo diesel engines during extended heavy-load operations.
Core Feature Highlights
  • Top Square Flange Integrated Interface with large-area sealing surface for excellent pressure resistance and leak-free performance under high boost pressure
  • Four-Side Full Perforated Mount Frame with dense mounting holes for flexible installation angle and position adjustment
  • Ultra-Dense Vertical Louver Turbulent Fin Matrix providing huge heat exchange area and stable cooling performance
  • Thickened Integrated Welded Frame Structure with multi-layer reinforcement for strong anti-vibration and anti-collision capability
  • Large Rectangular Wide Core Body with sufficient heat dissipation capacity to prevent engine power drop
Standard Technical Parameters
Product Model Heavy Mining & Construction Machinery Top Square Flange Vertical Fin Aluminum Turbo Intercooler
Raw Material 3003 extra thick high toughness impact-resistant anti-corrosion aluminum alloy
Air Channel Tightness Test Pressure 1.1–2.2 MPa full air tightness pressure inspection for each finished product
Fin Type & Density Vertical louver turbulence fin, 16–28 FPI adjustable
Max Long-Term Continuous Operating Temperature ≤200℃
Production Process Automatic fin stacking, integral vacuum brazing, full surrounding frame stamping, square flange one-piece welding forming
Applicable Medium Turbocharged high-temperature compressed intake air of large excavators, mining loaders, heavy road rollers
Applicable Working Environment
Ambient Temperature Range -50℃ ~ +85℃
Relative Humidity 2%–100% harsh mine & construction site environment with thick dust, mud, gravel impact, rain splash and intense high-frequency vibration
Installation Position Front or side fixed installation on heavy construction machinery engine compartment
Working Condition Long-time uninterrupted heavy-load mining construction, strong impact vibration, large-range turbo airflow pressure fluctuation
Environmental Resistance Natural aluminum anti-oxidation performance, vertical fin gaps resistant to blockage, cleanable with high-pressure water gun
Product Competitive Advantages
  • Material Advantage: Extra thick frame and flange plate for strong anti-collision and pressure resistance
  • Process Advantage: Integral vacuum brazing core reduces welding leakage points and failure rates
  • Layout Advantage: Full surrounding multi-hole mounting frame provides ultra-high installation flexibility
  • Quality Control: Each intercooler undergoes full-channel air tightness pressure testing and calibration
  • Customization Advantage: Support for non-standard core size, flange aperture, and hole distance customization
Target Market & Customer Groups
Main sales regions include domestic heavy mining and construction machinery OEM manufacturers, large engineering vehicle maintenance enterprises, mining machinery parts wholesalers, and international heavy engineering equipment spare parts merchants. Core customers include large excavator/mining loader complete machine factories, engineering radiator supporting factories, and mine equipment after-sales maintenance stations.
