Top Integral Guard Pipe Multi Angle Mount Horizontal Fin Liquid Cooling Heat Exchanger

Sample order acceptable
MOQ
Negotiable
Price
Top Integral Guard Pipe Multi Angle Mount Horizontal Fin Liquid Cooling Heat Exchanger
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 3003 Lightweight Anti-freeze Anti-corrosion Aluminum Alloy
Internal Channel Pressure: 1.4–2.5 MPa
Fin Density: 22–40 FPI Adjustable
Max Working Temperature: ≤92℃
Ambient Temperature Range: -42℃ ~ +72℃
Relative Humidity: 4%–96%
Highlight:

liquid cooling heat exchanger

,

Horizontal liquid cooling heat exchanger

,

2.5MPa water cooled plate heat exchanger
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

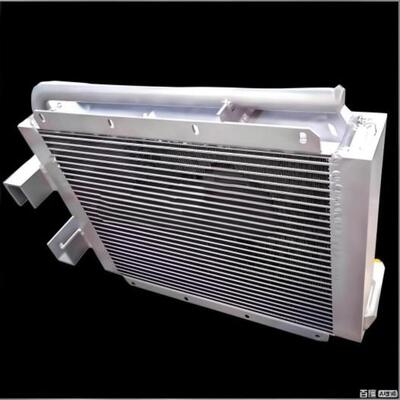

Top Integral Guard Pipe Multi Angle Mount Horizontal Fin Liquid Cooling Heat Exchanger

Top Integral Guard Pipe Multi-Angle Mount Horizontal Fin Liquid Cooling Heat Exchanger
Specially developed for new energy heavy electric loaders, battery mining trucks, commercial vehicle battery thermal management systems, and electric drive hydraulic cooling systems.
Core Feature Highlights
  • Top Integral U-Shaped Protection Pipe Frame wraps the upper header assembly, preventing collision damage and reducing coolant leakage risk
  • Left Multi-Angle Custom Bending Mount Brackets with multi-direction staggered fixed lugs match uneven frame installation positions
  • High-Density Horizontal Low-Wind-Resistance Louver Fin Matrix balances heat exchange efficiency and fan power consumption
  • Independent Side Special Medium Interface with separate flow channel design prevents medium mixing
  • Full Perimeter Pre-Opened Mount Hole Bottom Frame enables multi-point uniform stress bearing
Standard Technical Parameters
Product Model New Energy Electric Engineering Machinery Multi-Bracket Top Guard Pipe Horizontal Fin Liquid Cooling Heat Exchanger
Raw Material 3003 lightweight anti-freeze anti-corrosion aluminum alloy
Internal Channel Pressure Test 1.4–2.5 MPa full liquid tightness inspection
Fin Form & Density Horizontal louver turbulence fin, 22–40 FPI adjustable
Max Long-Term Continuous Working Temperature ≤92℃
Production Process Fin automatic stacking, integral vacuum brazing, top protection pipe one-piece bending
Applicable Medium New energy battery thermal management coolant, circulating cooling liquid for electric drive hydraulic system
Applicable Working Environment
Ambient Temperature Range -42℃ ~ +72℃
Relative Humidity 4%–96% outdoor environments with dust, mud splash, and low-frequency vibration
Installation Position Fixed installation at rear or side of battery compartment and hydraulic cabin
Working Condition Long-time heavy-load electric driving with stable continuous heat generation
Environmental Resistance Natural aluminum anti-oxidation, easy cleaning, compatible with cooling antifreeze medium
Product Competitive Advantages
  • Material Advantage: Lightweight thin-wall aluminum structure reduces vehicle dead weight and improves cruising range
  • Process Advantage: Integral vacuum brazing eliminates micro-leakage risks and prevents scaling
  • Layout Advantage: Multi-angle bracket + top protective pipe integrated design enables one-piece replacement
  • Quality Control: Comprehensive testing including high-pressure tightness, bracket angle, and flatness calibration
  • Customization Advantage: Support free adjustment of bracket angle, interface position, and core thickness
Target Market & Customer Groups
Domestic and international new energy electric mine vehicle OEM manufacturers, thermal management system factories, energy storage equipment cooling parts suppliers, and construction machinery spare parts merchants. Core customers include electric engineering vehicle manufacturers, power battery cooling system producers, and hydraulic radiator enterprises.
