Features

Specifications

Internal Oil Pressure: 2.1–3.4 MPa

Fin Density: 16–28 FPI

Max Working Temperature: ≤124℃

Ambient Temperature Range: -50℃ ~ +86℃

Relative Humidity: 2%–100%

Material: 3003 Aluminum Alloy

Highlight:

3.4MPa hydraulic oil cooler

Horizontal hydraulic oil cooler

2.1MPa plate and fin heat exchanger

Basic Infomation

Place of Origin: China

Brand Name: Biala

Payment & Shipping Terms

Packaging Details: Customized packing

Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders

Payment Terms: T/T, L/C

Gallery

Bilateral Vertical Bracket Dual Top Bottom Horizontal Fin Hydraulic Oil Cooler

Product Description

Bilateral Vertical Bracket Dual Top Bottom Horizontal Fin Hydraulic Oil Cooler

Bilateral Vertical Bracket Dual Top & Bottom Yellow Protective Cap Horizontal Fin Hydraulic Oil Cooler

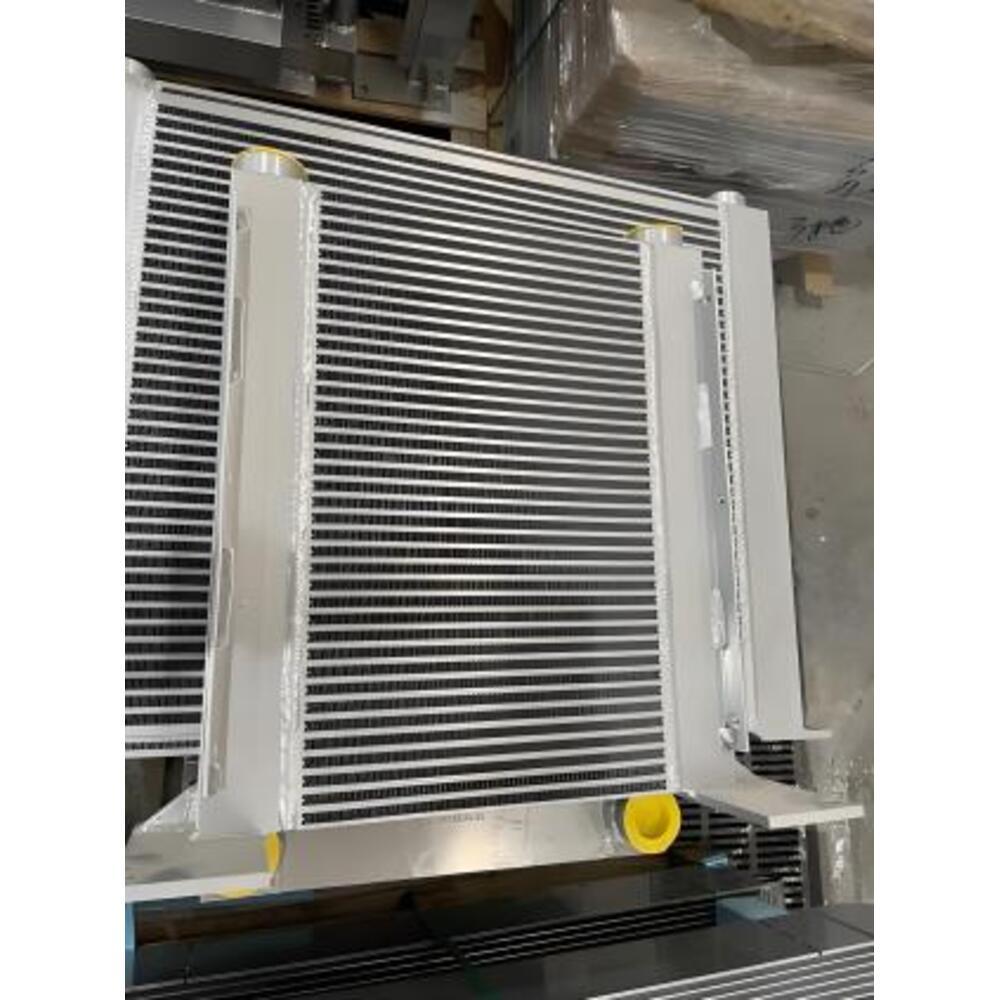

This vertical square full-aluminum hydraulic heat exchanger is specially designed for large tonnage excavators, mining loaders, rock drilling rigs, and heavy road construction machinery hydraulic cooling systems. It features symmetrical double vertical long support brackets for integral clamping installation, two large-caliber upper horizontal oil ports and one lower main oil port, all equipped with yellow plastic dust caps to prevent contamination during storage and assembly.

Core Feature Highlights

Bilateral Symmetrical Vertical Long Integrated Support Brackets - One-piece stamped frame and brackets for uniform stress bearing, preventing bracket fracture under long-term vibration
Three Large-Caliber Oil Ports With Yellow Protective Caps - Dust-proof protection during transportation and assembly, preventing fin and pipeline blockage
Vertical Oversized Square Core Body - Increased vertical heat exchange height with ultra-large heat dissipation area for stable temperature control
Horizontal Interleaved High-Density Louver Fin Matrix - Breaks air boundary layer flow to improve heat exchange efficiency
Integral Thickened Header Box Welding Structure - Reduces peripheral welding seams, enhancing overall rigidity and vibration resistance

Standard Technical Parameters

Product Model	Large Mining Construction Machinery Bilateral Vertical Bracket Yellow Cap Horizontal Fin Aluminum Hydraulic Oil Cooler
Raw Material	3003 extra thick pressure-resistant anti-impact anti-corrosion aluminum alloy with wear-resistant yellow plastic protective caps
Internal Oil Channel Pressure Test	2.1–3.4 MPa full independent oil tightness inspection
Fin Form & Density	Horizontal louver turbulence fin, 16–28 FPI adjustable
Max Long-Term Continuous Working Temperature	≤124℃
Production Process	Fin automatic stacking, integral vacuum brazing, bilateral vertical bracket one-piece stamping
Applicable Medium	High-temperature circulating hydraulic oil of large excavators, mining loaders, rock drilling rigs, heavy pavers

Applicable Working Environment

Ambient Temperature Range	-50℃ ~ +86℃
Relative Humidity	2%–100% harsh open-air mine & earthwork site environment
Installation Position	Clamped fixed installation at the rear side of heavy construction machinery engine compartment
Working Condition	24-hour uninterrupted full-load operation with instantaneous high hydraulic pressure impact
Environmental Resistance	Natural aluminum anti-oxidation performance, horizontal fin gaps allow direct high-pressure water cleaning

Product Competitive Advantages

Material Advantage: Extra thick integrated vertical brackets and header box for strong anti-collision performance
Process Advantage: Integral vacuum brazing core minimizes internal oil leakage points with high-pressure oil tightness testing
Layout Advantage: Bilateral full-height vertical brackets enable quick integral disassembly and replacement
Quality Control: Comprehensive pressure detection and calibration before packaging
Customization Advantage: Support arbitrary adjustment of core height, oil port caliber, bracket hole spacing and protective cap color

Target Market & Customer Groups

Main sales regions: Domestic heavy mining construction machinery OEM manufacturers, large mine equipment maintenance bases, engineering machinery radiator wholesalers, and cross-border heavy engineering equipment spare parts merchants in Southeast Asia, Africa and Central Asia. Core customers include large excavator/mining loader complete machine factories, hydraulic radiator professional supporting factories, and mine engineering equipment after-sales maintenance enterprises.

SEO Search Title Options

1. Bilateral Vertical Long Bracket Yellow Dust Cap Horizontal Fin Aluminum Hydraulic Oil Cooler For Large Excavator Mining Loader

2. Vertical Oversized Core Vacuum Brazed Large Flow Hydraulic Heat Exchanger For Rock Drilling Rig Heavy Construction Machinery

3. Three Main Oil Ports Dust-Proof All-Aluminum Hydraulic Cooler Customizable For Heavy Mining Engineering Equipment Hydraulic System
