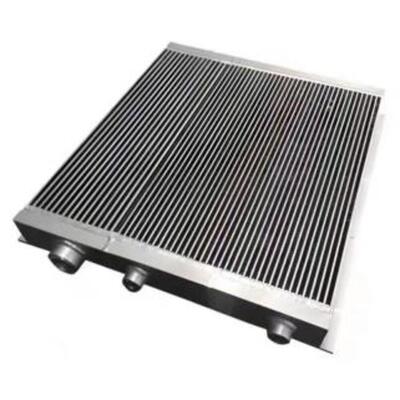

Three Port Single Bottom Header Aluminum Air Compressor Heat Exchanger Plate Fin Cooler

This square all-aluminum plate fin heat exchanger is dedicated to industrial screw air compressor cooling systems. It features a single-side bottom three staggered straight pipe ports layout, dense parallel louver fins, and one-piece vacuum brazing molding with raw aluminum finish. Three separated runners enable synchronous cooling of compressed air and lubricating oil within the compressor unit. The flat square outline matches standard compressor cabinet inner space, with adjustable fin density and pipe caliber for different power compressor models.

• Single Bottom Side Triple Staggered Pipe Ports for centralized pipeline arrangement and simplified compressor internal piping layout
• Integrated Thickened Bottom Header with strong pressure resistance to withstand long-term pulse fluid impact
• High-Density Louver Turbulent Fins for efficient heat dissipation from compressed air and lubricant
• Square Flat Standard Outline compatible with mainstream screw compressor unit cabinet installation dimensions
• Bare aluminum original surface for outstanding heat conduction performance without heat loss from paint coating

• Material: High-pressure thick aluminum header resists repeated fluid pressure fluctuation without leakage
• Craftsmanship: Integral vacuum brazing eliminates medium mixing risk, preventing compressor oil emulsification failure
• Performance: Triple-port integrated design enables oil-air combined cooling in one core, reducing heat exchange parts
• Quality Control: Independent hydraulic pressure test for each channel with flatness inspection before shipment
• Global Applicability: Complete size specifications for various brands screw air compressor OEM manufacturers worldwide

Main sales regions include Southeast Asia, Europe, North America, Middle East and domestic compressor equipment factories. Core customers are screw air compressor manufacturers, compressor radiator supporting factories, pneumatic equipment wholesalers and global compressor after-market spare parts suppliers.

• Three Bottom Ports Vacuum Brazed Aluminum Louver Fin Cooler Core for Screw Air Compressor
• Single-Side Triple Staggered Pipe Port All-Aluminum Oil-Air Combined Heat Exchanger
• Square Flat Bare Aluminum Compressor Cooler with Integrated Thickened Bottom Header
