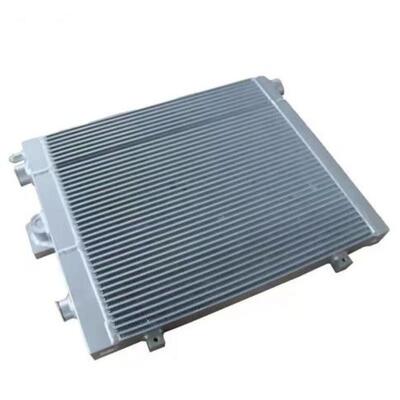

Left Side Multi Port Single Layer Aluminum Air Compressor Heat Exchanger Plate Fin Cooler

This single-layer flat aluminum cooling core is specially customized for screw air compressors, featuring left-side centralized multi-tube joint layout and four-corner independent mounting lugs. High-density horizontal straight fins and integral vacuum brazing form separated oil and gas dual runners, enabling one-piece combined cooling of compressor lubricating oil and exhaust air.

Raw aluminum polished finish ensures efficient heat conduction, while the flat thin body adapts to narrow horizontal compressor cabinet layouts. Custom tube caliber and overall outline options are available for different power compressor units.

• Left Concentrated Multi-Port Integrated Header - gathers oil inlet, oil outlet and air pipeline on one side to simplify internal compressor wiring
• Four Independent Corner Mini Mount Lugs - distribute stress to avoid core deformation under long-term unit vibration
• Ultra-Thin Single Layer Flat Structure - saves vertical cabinet space for compact small and medium-sized compressors
• Dense Horizontal Straight Fin Air Channel - low wind resistance reduces cooling fan power consumption
• Separated Oil & Gas Independent Flow Channels - prevent lubricant emulsification caused by medium mixing inside compressor

• Material: Lightweight high thermal conductivity aluminum alloy thin frame, does not increase overall weight of compact compressor equipment
• Craftsmanship: One-time vacuum brazing molding completely isolates oil and gas runners, fundamentally eliminating cross-medium leakage failure
• Performance: Left concentrated multi-port design shortens internal pipeline length, reducing system pressure loss during full-load operation
• Quality Control: Separate hydraulic leak inspection for each flow channel, dimensional calibration of all mounting lugs before delivery
• Global Applicability: Multiple standard size series, matching small and medium power screw compressor OEM supporting demands worldwide

Main sales regions include Southeast Asia, Eastern Europe, North America and domestic compressor supporting factories. Core customers include small & medium screw air compressor manufacturers, compressor radiator matching suppliers, pneumatic equipment wholesalers and global compressor after-sales spare parts distributors.
