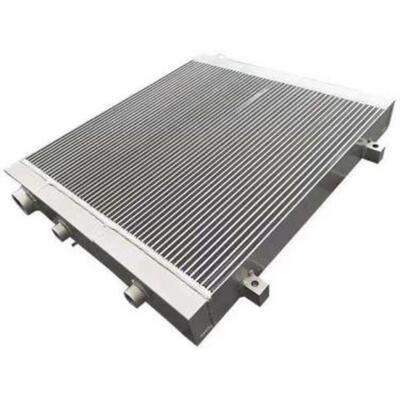

Single Side Horizontal Nozzle Aluminum Air Compressor Heat Exchanger Plate Fin Cooler

This wide-format aluminum cooling core is exclusively developed for medium and large screw air compressors. Featuring three horizontal parallel fluid nozzles concentrated on the bottom single header and two independent square mounting lugs on the right frame edge, it utilizes high-density parallel straight fins and full vacuum brazing to form isolated oil and gas dual flow passages for integrated cooling of compressor lubricating oil and high-temperature exhaust gas.

• Bottom side three parallel horizontal nozzles for horizontal pipeline layout compatibility
• Dual right edge independent square mount lugs for concentrated stress bearing
• Wide large-area fin layout for expanded heat exchange area
• Thickened integral perimeter frame for vibration resistance
• Completely separated oil & gas flow channels to prevent medium mixing

• Material: Thickened aluminum frame and header for enhanced pressure resistance
• Craftsmanship: One-time integral vacuum brazing eliminates hidden leakage points
• Performance: Extra-wide fin surface improves heat dissipation capacity
• Quality Control: Independent high-pressure hydraulic test for each flow channel
• Global Applicability: Multiple wide-size specifications with OEM customization support

Main sales markets cover Europe, Southeast Asia, Middle East, North America and domestic large compressor complete machine factories. Core customers include medium & high-power screw air compressor manufacturers, large air station supporting equipment suppliers, industrial pneumatic system integrators and cross-border compressor aftermarket spare parts wholesalers.
