Full Frame Perforated Mount Aluminum Air Compressor Heat Exchanger Plate Fin Cooler Screw

Sample order acceptable
MOQ
Negotiable
Price
Full Frame Perforated Mount Aluminum Air Compressor Heat Exchanger Plate Fin Cooler Screw
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 3003 Lightweight Anti-Oxidation Aluminum Alloy Plate & Fin
Hydraulic Test Pressure: 1.4–3.8 MPa
Fin Form: Vertical Parallel Straight Fin, 24–36 FPI Optional
Max Working Temperature: 200℃
Processing Craft: Fin Stacking, Integral Vacuum Brazing, Full Frame Perforation CNC Integrated Machining
Ambient Temperature Range: -39℃ ~ +66℃
Highlight:

full frame aluminum plate heat exchanger

,

perforated mount air compressor cooler

,

small screw compressor heat exchanger
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

Full Frame Perforated Mount Aluminum Plate Fin Heat Exchanger for Small Screw Air Compressor

Full Frame Perforated Mount Aluminum Plate Fin Heat Exchanger for Small Screw Air Compressor

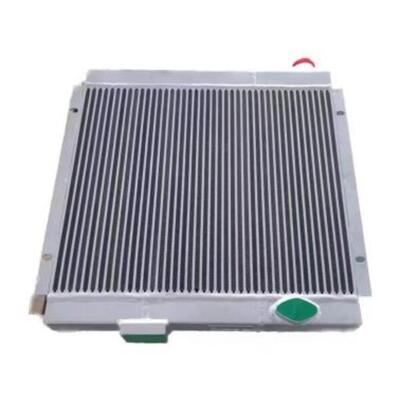

This square compact aluminum cooling core is customized for small power screw air compressors, featuring a full border perforated integrated mounting frame, bottom centralized double fluid ports with green anti-dust protective caps, and a top exhaust red plug. Dense vertical straight fins with integral vacuum brazing form independent oil and gas dual runners, enabling integrated cooling of compressor lubricating oil and high-temperature exhaust gas.
Features & Highlights
  • Full Surround Perforated Frame Design: Multi-hole uniform mounting for flexible four-side fixing inside mini compressor cabinets
  • Bottom Dual Ports with Green Sealing Caps: Protects against welding slag and dust during equipment assembly and storage
  • Reserved Top Manual Vent Plug: Fast exhaust to eliminate air lock and maintain compressor cooling efficiency
  • High-Density Vertical Straight Fin Air Channels: Low wind resistance optimized for small-size supporting cooling fans
  • Separated Oil-Gas Independent Flow Channels: Prevents cross-medium mixing and compressor lubricant emulsification failure
Technical Parameters
Item Specification
Product Type Small Compressor Full Frame Perforated Mount Vertical Straight Fin Aluminum Cooler Core
Raw Material 3003 Lightweight Anti-Oxidation Aluminum Alloy Plate & Fin
Single Runner Hydraulic Test Pressure 1.4–3.8 MPa Separate tightness inspection for oil and gas channels
Fin Form Vertical parallel straight fin, 24–36 FPI optional
Max Continuous Working Temperature 200℃
Processing Craft Fin stacking, integral vacuum brazing, full frame perforation CNC integrated machining
Applicable Medium Small screw compressor high-temperature compressed air, circulating lubricating oil
Operating Environment
Item Requirement
Ambient Temperature Range -39℃ ~ +66℃
Relative Humidity 10%–94% small compressor workshop with light oil mist and fine dust
Installation Position Vertical built-in installation inside mini power screw air compressor cabinet
Working Condition Intermittent and continuous mixed operation, low-amplitude mild mechanical vibration
Environmental Resistance Natural aluminum anti-oxidation, fin gap not easy to accumulate thick dirt for easy cleaning
Product Advantages
  • Material: Light thin anti-rust aluminum alloy frame reduces overall unit weight, matching portable small compressor lightweight design demand
  • Craftsmanship: One-time integral vacuum brazing molding completely isolates oil and gas runners, reducing leakage maintenance frequency
  • Performance: Full border multi-hole mounting frame allows arbitrary fixing position adjustment to adapt to irregular narrow cabinet spaces
  • Quality Control: Independent hydraulic leak test for each flow channel, frame hole position precision calibration before factory delivery
  • Global Applicability: Multiple compact square size series, fully meeting OEM supporting procurement needs of low-power screw compressor manufacturers worldwide
Target Market
Main sales regions include Southeast Asia, Eastern Europe and domestic small pneumatic equipment factories. Core customers are portable small screw air compressor manufacturers, mini air station supporting suppliers, pneumatic equipment retail wholesalers and cross-border small compressor aftermarket spare parts distributors.
SEO Title Options
  • Full Frame Perforated Mount Vertical Straight Fin Aluminum Cooler Core for Small Screw Air Compressor
  • Bottom Dual Ports with Green Dust Caps Vacuum Brazed Oil-Gas Combined Heat Exchanger
  • Mini Compressor Dedicated Square All-Aluminum Radiator with Top Exhaust Vent Plug
