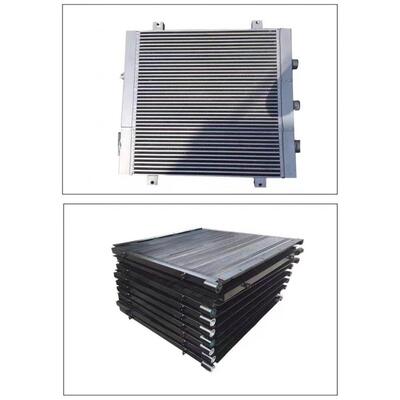

Four Corner Mount Triple Port Aluminum Air Compressor Heat Exchanger Plate Fin Cooler

This square standardized compressor cooling core is engineered for medium-power screw air compressor units, featuring four-corner independent suspension lugs and vertical side three-tier staggered fluid pipe ports. Dense horizontal louver turbulence fins utilize integral vacuum brazing to form isolated oil and gas dual runners, integrating oil cooling and air cooling into a single core unit.

• Four-corner symmetric suspension lugs for uniform stress dispersion and vibration resistance
• Vertical side three staggered pipe ports prevent pipeline interference in compressor cabinets
• High-density louver turbulent fin structure enhances heat dissipation efficiency
• Stackable standardized outline reduces storage and transportation costs
• Fully separated oil-gas independent channels eliminate medium mixing risks

• Material: Thickened aluminum frame and header enhance structural rigidity for heavy-load operation
• Craftsmanship: One-time integral vacuum brazing reduces leakage points and maintenance rates
• Performance: Vertical three-layer staggered pipe port design simplifies internal assembly
• Quality Control: Independent hydraulic tightness inspection and lug flatness calibration
• Global Applicability: Unified standard size series for worldwide OEM manufacturers

Primary sales regions include Southeast Asia, Europe, North America, Middle East, and domestic medium air compressor manufacturers. Core customers are medium-power screw air compressor complete machine factories, compressor radiator bulk suppliers, industrial pneumatic system integrators, and cross-border compressor aftermarket spare parts wholesalers.
