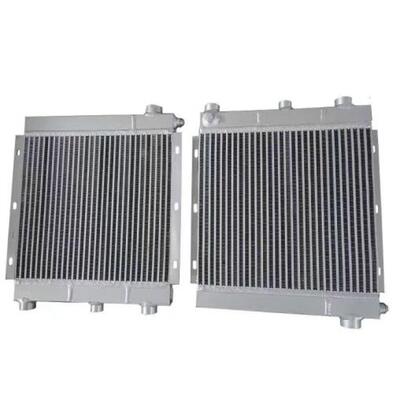

Side Slot Hole Mount Dual Spec Modular Aluminum Air Compressor Heat Exchanger Plate Fin

This two-size interchangeable aluminum cooling core is customized for multi-model series screw air compressors, featuring long slotted mounting holes on the left and right side frames for adjustable installation spacing. The modular design incorporates different upper and lower multi-port layouts, combined with dense vertical straight fins and integral vacuum brazing to form independent oil and gas cooling channels.

• Left & Right Side Long Slotted Mount Holes for flexible horizontal installation positioning to accommodate various compressor cabinet sizes
• Dual Interchangeable Standard Specifications covering low and medium power compressors for unified frame assembly line compatibility
• Differentiated Multi-Port Layout for Two Models to accommodate single-circuit and dual-circuit compressor internal pipeline requirements
• Uniform Vertical Dense Straight Fin Air Flues with low wind resistance to reduce energy consumption of supporting cooling fans
• Fully Isolated Oil-Gas Separate Runners to prevent medium mixing and lubricating oil emulsification in compressor systems

• Material: Unified thickened aluminum frame for two specifications, consistent structural rigidity, stable operation under long-term compressor vibration
• Craftsmanship: Integral one-time vacuum brazing eliminates split welding leakage points, significantly reducing after-sales leakage failure rate of series compressor equipment
• Performance: Side long slotted holes provide adjustable mounting range, enabling one cooling core to adapt to multiple cabinet sizes and shortening compressor model development cycles
• Quality Control: Separate hydraulic leak inspection for each runner, slotted hole position tolerance calibration before batch delivery of both specifications
• Global Applicability: Dual standard interchangeable size series meeting unified supporting procurement demands of full-series screw compressor OEM manufacturers worldwide

Main sales regions cover Southeast Asia, Eastern Europe, North America and domestic full-series air compressor complete machine factories. Core customers include multi-power series screw air compressor manufacturers, compressor radiator bulk supporting suppliers, industrial pneumatic system integrators and cross-border compressor aftermarket spare parts wholesalers.
