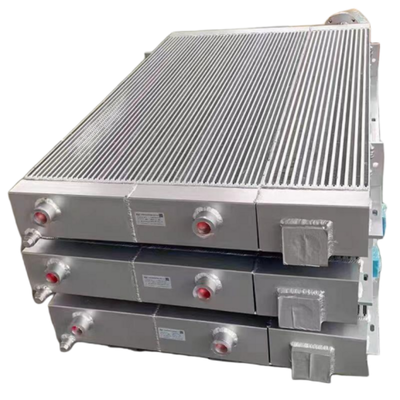

Large Horizontal Header Multi Circuit Aluminum Air Compressor Heat Exchanger Heavy Duty

This wide oversized aluminum cooling core is specifically engineered for heavy-duty high-power screw air compressors. It features three separated integrated horizontal headers with dual red-capped fluid ports on each section, plus an extra reserved auxiliary valve interface on the right side. Wide-area horizontal straight fins are formed by full vacuum brazing, with independent oil cooling, air cooling, and auxiliary cooling circuits built inside. Side strip mounting lugs support horizontal suspension installation, while the bare aluminum finish delivers outstanding heat dissipation efficiency.

• Three separated independent horizontal headers enable three-circuit isolated heat exchange to meet multi-medium cooling demands
• Dual red-capped standard ports per header for centralized pipeline layout of oil, air, and auxiliary medium pipelines
• Extra reserved auxiliary valve interface for convenient installation of pressure sensors, exhaust valves, and other compressor components
• Ultra-wide large fin surface expands heat exchange area to handle ultra-high heat loads under continuous operation
• Side long strip integrated mount lugs provide uniform bearing force to prevent core displacement under strong vibration

• Material: Extra thickened three-section header and frame improve pressure bearing capacity, resisting long-term pulse pressure impact
• Craftsmanship: One-time integral vacuum brazing completely isolates three independent runners, eliminating cross-medium mixing risks
• Performance: Triple header split design separates heat load of each circuit, preventing local overheating and high-temperature shutdown
• Quality Control: Independent high-pressure hydraulic leak test for each circuit, with label calibration and mounting flatness inspection
• Global Applicability: Unified large-size standard model meets bulk procurement demands of heavy high-power screw compressor manufacturers worldwide

Main sales regions include Europe, Middle East, Southeast Asia, North America and domestic large heavy industrial compressor factories. Core customers are high-power heavy screw air compressor complete machine manufacturers, large air station system integrators, industrial heavy equipment supporting suppliers and cross-border large compressor aftermarket spare parts wholesalers.
