Vertical Four Corner Triple Side Port Aluminum Air Compressor Heat Exchanger Plate Fin

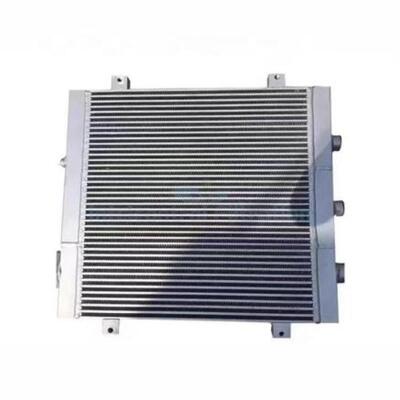

This square aluminum cooling core is specially designed for mid-sized industrial screw air compressors, featuring four-corner independent mounting lugs and three vertically stacked fluid ports concentrated on the right side header. Dense horizontal parallel fins are integrally vacuum brazed to form mutually isolated oil and gas dual runners, providing integrated cooling of compressor lubricating oil and high-temperature exhaust air.

The symmetrical square outline fits standard compressor cabinet installation dimensions, with bare aluminum raw finish ensuring high thermal conductivity. Pipe caliber, fin density, and overall size can be customized for different power compressor models.

• Four-corner symmetric independent mount lugs for multi-point uniform stress distribution to offset long-term running vibration
• Right side vertical three-layer stacked ports for layered pipeline layout, avoiding assembly interference
• Uniform horizontal dense straight fin channels with low air flow resistance to reduce cooling fan power consumption
• Symmetrical square standard frame compatible with mainstream mid-power screw compressor cabinet internal space
• Fully separated oil-gas independent flow channels eliminate medium mixing and prevent compressor oil emulsification failure

• Material: Thickened integrated aluminum frame and side header enhance structural rigidity, resistant to deformation under long-term vibration
• Craftsmanship: One-time integral vacuum brazing molding reduces split welding leakage points, lowering after-sales maintenance rate
• Performance: Right side vertical three stacked ports orderly classify oil inlet, oil outlet and air pipelines, simplifying assembly procedures
• Quality Control: Independent hydraulic leak test for each flow channel, flatness calibration of all four-corner mounting lugs before factory delivery
• Global Applicability: Complete standard square size series meets bulk OEM supporting procurement demands worldwide
