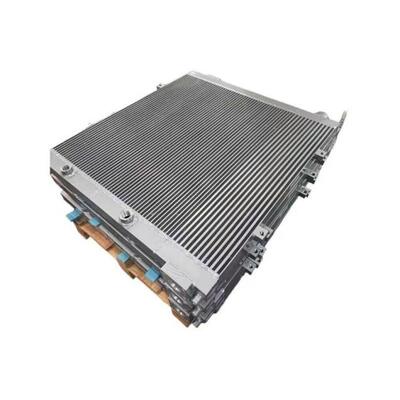

Side Multi Layer Stacked Bracket Wide Aluminum Air Compressor Heat Exchanger Fin Cooler

This large-format wide aluminum cooling core is engineered for high-power industrial screw air compressors. Featuring multi-layer stacked lock-type mounting brackets on the right frame and two large-caliber fluid ports on the top left header, it delivers integrated oil and air cooling through dense horizontal straight fins formed by full vacuum brazing.

• Right Side Multi-Layer Stacked Lock Brackets for adjustable fixing structure
• Top Left Dual Large-Caliber Fluid Ports for high-flow medium circulation
• Oversized Wide Fin Heat Dissipation Surface for continuous full load operation
• Thickened Perimeter Integrated Frame for anti-deformation performance
• Fully Separated Oil-Gas Independent Flow Channels to prevent medium mixing

• Material: Extra thickened aluminum frame and header for superior pressure bearing capacity
• Craftsmanship: One-time integral vacuum brazing eliminates split welding leakage points
• Performance: Multi-layer stacked lock brackets support flexible layered installation
• Quality Control: Independent high-pressure hydraulic leak testing for each flow channel
• Global Applicability: Multiple wide-size standard models with batch pallet delivery

Main sales regions include Europe, Middle East, Southeast Asia, North America and domestic large industrial heavy compressor factories. Core customers are high-power screw air compressor complete machine manufacturers, large air station system integrators, heavy pneumatic equipment supporting suppliers and cross-border large compressor aftermarket spare parts wholesalers.
