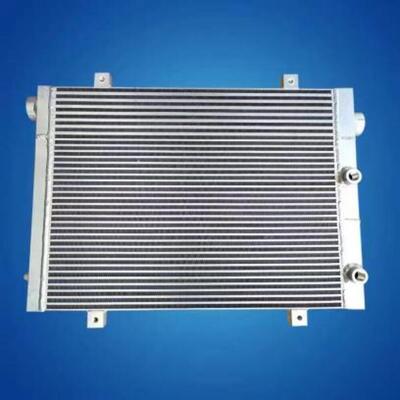

Dual Side Separated Port Four Corner Horizontal Air Compressor Heat Exchanger Fin Cooler

This rectangular all-aluminum cooling core is developed for universal medium-power screw air compressors, adopting four-corner independent square mounting lugs for stable vertical installation. Fluid interfaces are split on two side headers: one large main port on the left, plus one air port and two oil ports vertically arranged on the right frame. Dense horizontal parallel fins are molded via integral vacuum brazing to form mutually independent oil cooling and air cooling flow channels, finishing dual-medium heat dissipation in one unit. Bare aluminum surface retains optimal heat transfer performance, with port bore size and overall dimensions customizable for different series compressor OEM matching.

• Four-Corner Symmetric Independent Mount Lugs, multi-point uniform stress distribution to offset long-period vibration of compressor main engines
• Left & Right Separated Multi-Port Layout, split gas and oil pipelines to avoid pipeline winding and assembly interference inside equipment cabinets
• Vertical Layered Dual Oil Ports on Right Header, convenient series-parallel pipeline connection for dual-circuit lubrication systems of medium compressors
• Uniform Horizontal Straight Fin Air Flues, low wind resistance to reduce energy consumption of matched cooling fans
• Fully Isolated Dual Flow Channels, thoroughly prevent medium mixing and eliminate compressor lubricant emulsification failures

• Material: Thickened one-piece aluminum frame and headers boost structural rigidity, resisting bending deformation under long-term compressor vibration
• Craftsmanship: One-time integral vacuum brazing removes split welding leakage points, effectively lowering after-sales leakage maintenance frequency of compressor complete machines
• Performance: Dual-side separated port layout distinguishes gas and oil pipelines clearly, simplifying internal assembly procedures for compressor manufacturers' production lines
• Quality Control: Independent hydraulic leak inspection for each flow channel, flatness calibration of all four mounting lugs before factory delivery
• Global Applicability: Complete standard rectangular size series, support non-standard size modification, meet mass supporting procurement demands of medium-power screw compressor manufacturers worldwide

• Four-Corner Anti-Vibration Mount Lug Dual-Side Split Port Horizontal Fin Aluminum Cooler for Medium Screw Air Compressor
• Vertical Layered Dual Oil Port Vacuum Brazed Oil-Gas Combined Heat Exchanger Core
• Universal Rectangular All-Aluminum Compressor Radiator With Separated Gas-Oil Pipeline Interfaces
