Bilateral Separate Fluid Port Four Corner Mount Horizontal Air Compressor Heat Exchanger

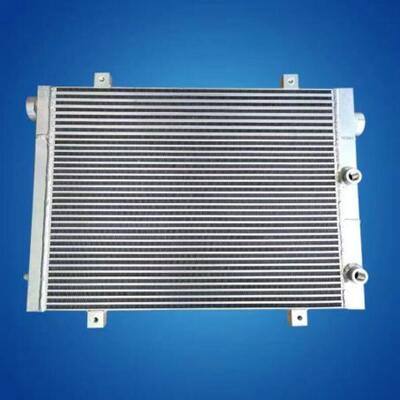

This rectangular all-aluminum composite cooling core is customized for mid-power industrial screw air compressors, featuring four-corner independent suspension mounting lugs for stable vertical installation. Fluid interfaces are split between two side headers: one large main air port on the left vertical plate, while two vertically stacked oil circulation ports are arranged on the right side with a matching air outlet end cap.

High-density horizontal louver turbulence fins utilize one-piece vacuum brazing molding, creating fully isolated oil cooling and air cooling dual flow channels to achieve dual-medium integrated heat dissipation. The natural bare aluminum surface maintains superior thermal conductivity, while port aperture, fin density, and overall frame size can be adjusted to match different power compressor unit OEM requirements.

• Four-corner symmetrical suspension mounting lugs provide multi-point balanced bearing force to offset long-term low-frequency vibration of compressor main engine, preventing core loosening or displacement
• Left-right separated fluid port layout divides air pipeline and lubricating oil pipeline on two sides, effectively preventing pipeline winding and assembly interference inside narrow compressor cabinets
• Vertical double-layer oil ports on right header support series-parallel connection of dual-circuit lubrication system, adapting to high-lubrication-demand medium-power compressor models
• Horizontal louver turbulent fin structure disrupts airflow boundary layer to strengthen heat exchange efficiency under continuous full-load high temperature working conditions
• Physically isolated independent oil-air runners completely block medium cross-mixing, eliminating compressor oil emulsification and high-temperature shutdown failure risks

• Material Advantage: Integrated thickened aluminum frame and double-side headers enhance integral rigidity, resisting bending deformation under long-term compressor vibration impact
• Process Advantage: One-time integral vacuum brazing removes split welding leakage seams, greatly reducing after-sales leakage maintenance frequency of complete compressor equipment
• Layout Advantage: Bilateral separated port design clearly distinguishes air and oil pipelines, simplifying assembly operation of compressor manufacturers' production lines and shortening assembly cycle
• Quality Control: Each flow channel undergoes independent high-pressure hydraulic leak inspection; flatness and verticality calibration for all four mounting lugs before delivery
• Global Matching Advantage: Complete rectangular standard size series, supporting non-standard dimensional personalized modification to meet bulk supporting procurement needs of mid-power screw compressor OEM manufacturers worldwide

Main sales regions cover Southeast Asia, Eastern Europe, North America, Middle East and domestic medium industrial air compressor complete machine factories. Core clients include mid-power screw air compressor manufacturers, compressor radiator bulk supporting suppliers, industrial pneumatic system integrators and cross-border compressor aftermarket spare parts wholesalers.
