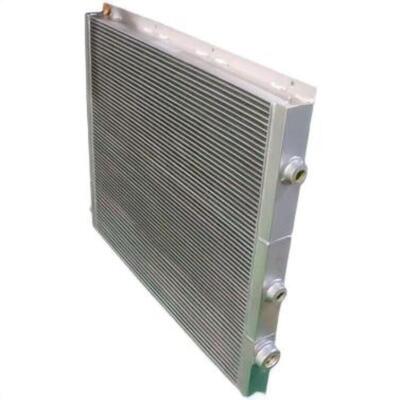

Single Side Vertical Triple Stacked Port Frame Aluminum Air Compressor Heat Exchanger

This vertical flat all-aluminum cooling core is exclusively designed for horizontal layout screw air compressors. It features three vertically layered fluid ports centralized on the single right-side integrated header, with reserved mounting hole positions distributed along the top edge frame. Dense horizontal straight fins adopt full vacuum integral brazing to form isolated oil and gas dual independent runners, completing one-piece combined cooling of compressor lubricating oil and high-temperature exhaust air.

The slim flat body adapts to the horizontal narrow internal space of horizontal compressors, while the bare aluminum original surface ensures stable heat dissipation efficiency. Port caliber, fin density, and overall height can be customized for horizontal series compressor OEM supporting orders.

• Single Side Vertical Triple Layer Stacked Ports - All oil and gas pipelines are concentrated on one vertical side to fit the horizontal pipeline layout
• Top Edge Reserved Multi-Position Mount Holes - Flexible adjustable installation points to match different horizontal compressor cabinet fixed beam positions
• Ultra-Slim Flat Integrated Frame - Saves vertical cabinet space and perfectly fits the horizontal compact layout
• Uniform Dense Horizontal Straight Fin Air Channels - Low air flow resistance reduces energy consumption of side-mounted cooling fans
• Fully Separated Oil-Gas Independent Flow Channels - Thoroughly blocks medium mixing and eliminates compressor oil emulsification and over-temperature shutdown faults

• Material: Slim lightweight integrated aluminum frame reduces overall weight, specially optimized for horizontal compressor compact internal layout demand
• Craftsmanship: One-time integral vacuum brazing molding eliminates split welding leakage points, effectively lowering after-sales leakage maintenance rate
• Performance: Single-side vertical three-layer stacked port design orderly arranges oil inlet, oil outlet and air pipeline, avoiding pipeline crossing inside narrow cabinets
• Quality Control: Independent hydraulic leak test for each flow channel, top mounting hole position tolerance calibration before factory delivery
• Global Applicability: Multiple slim flat standard size series, fully meeting bulk supporting procurement demands of horizontal screw compressor OEM manufacturers worldwide

Main sales regions include Southeast Asia, Eastern Europe, North America and domestic horizontal screw air compressor complete machine factories. Core customers are horizontal layout screw air compressor manufacturers, horizontal air station radiator supporting suppliers, industrial horizontal pneumatic equipment integrators and cross-border horizontal compressor aftermarket spare parts wholesalers.
