Frame Perforated Mount Bilateral Single Port Horizontal Air Compressor Heat Exchanger

Sample order acceptable
MOQ
Negotiable
Price
Frame Perforated Mount Bilateral Single Port Horizontal Air Compressor Heat Exchanger
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material: 3003 Thickened High-pressure Anti-corrosion Aluminum Alloy
Test Pressure: 1.6–4.2 MPa
Fin Density: 18–32 FPI Adjustable
Max Temperature: 210℃
Ambient Temperature: -43℃ ~ +70℃
Relative Humidity: 7%–97%
Highlight:

Full Frame aluminum heat exchanger

,

Bilateral port horizontal fin cooler

,

Industrial screw air compressor heat exchanger
Basic Infomation
Place of Origin: China
Brand Name: Biala
Payment & Shipping Terms
Packaging Details: Customized packing
Delivery Time: 7–15 working days for stock items; 20–30 working days for customized/OEM orders
Payment Terms: T/T, L/C
Product Description

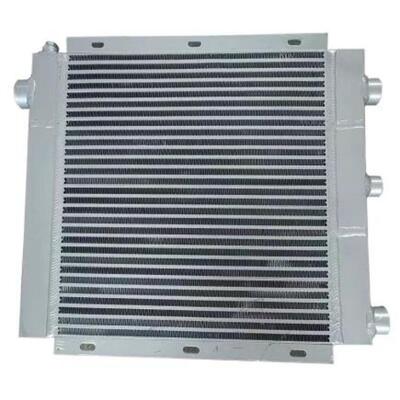

Full Frame Perforated Mount Bilateral Single Port Horizontal Fin Aluminum Heat Exchanger For Industrial Screw Air Compressor

Full Frame Perforated Mount Bilateral Single Port Horizontal Fin Aluminum Heat Exchanger
This rectangular all-aluminum cooling core is customized for medium-large industrial screw air compressors, adopting full upper and lower border perforated mounting strips for multi-point adjustable installation. Single large-caliber fluid ports are separately arranged on left and right vertical headers, forming independent oil cooling and air cooling dual runners through integral vacuum brazing.
Core Feature Highlights
  • Upper & Lower Full Border Perforated Mount Strips - dense multi-hole design allows arbitrary adjustment of fixed positions to match various compressor cabinet beam sizes
  • Left-Right Independent Single Large Ports - separate gas and oil flow passages on two sides, avoid pipeline overlapping and assembly obstruction inside large cabinet bodies
  • Ultra-Dense Uniform Horizontal Straight Fin Matrix - expand heat exchange area to effectively control exhaust temperature and prevent compressor high-temperature protection shutdown
  • Integrated Thickened Left & Right Side Headers - strong structural stability to resist long-term vibration of medium-large full-load compressors without deformation
  • Physically Isolated Dual Oil-Gas Runners - completely cut off medium mixing risk and eliminate lubricating oil emulsification failure of compressor circulation system
Standard Technical Parameters
Item Specification
Product Model Medium-Large Compressor Full Frame Perforated Mount Bilateral Single Port Horizontal Fin Aluminum Cooler Core
Raw Material 3003 thickened high-pressure anti-corrosion aluminum alloy
Single Runner Hydraulic Test Pressure 1.6–4.2 MPa Separate tightness detection for oil and gas channels
Fin Form & Density Horizontal parallel straight fin, 18–32 FPI adjustable
Max Long-Term Continuous Working Temperature 210℃
Production Process Fin automatic stacking, integral vacuum brazing, full frame perforation CNC integrated processing
Applicable Medium Medium-large screw compressor high-temperature compressed air, large-flow circulating lubricating oil
Applicable Working Environment
Item Requirement Standard
Ambient Temperature Range -43℃ ~ +70℃
Relative Humidity 7%–97% heavy industrial compressor station with heavy oil mist and metal dust accumulation
Installation Mode Vertical embedded installation inside wide cabinet of medium-large screw air compressors
Operating Condition 24-hour uninterrupted heavy full-load operation, strong periodic fluid pressure pulse, medium-large amplitude mechanical vibration
Surface Environmental Resistance Natural aluminum anti-oxidation, wide fin gap not easy to clog, suitable for regular high-pressure water flushing maintenance
Product Competitive Advantages
  • Material Advantage: Thickened integrated frame and bilateral headers significantly improve pressure bearing capacity, adapt long-term high-flow pulse pressure impact of medium-large compressors
  • Process Advantage: One-time integral vacuum brazing eliminates split welding leakage seams, greatly reduce after-sales leakage maintenance frequency of large compressor complete machines
  • Layout Advantage: Full upper and lower perforated mounting strips bring flexible installation range, one set of radiator adapts multiple cabinet sizes, shorten product development cycle for compressor manufacturers
  • Quality Control: Each flow channel undergoes independent high-pressure hydraulic leak test; all mounting hole position flatness calibration before batch packaging and delivery
  • Global Matching Advantage: Multiple standard wide-size series, support non-standard personalized modification, fully meet bulk OEM supporting procurement demands of medium-large screw compressor manufacturers worldwide
Target Market & Customer Groups
Main sales regions cover Europe, Middle East, Southeast Asia, North America and domestic medium-large industrial air compressor complete machine factories. Core clients include medium-high power screw air compressor manufacturers, large air station system integrators, heavy pneumatic equipment supporting suppliers and cross-border large compressor aftermarket spare parts wholesalers.
