Vertical Fin Liquid Cooling Radiator For Small New Energy Engineering Vehicles

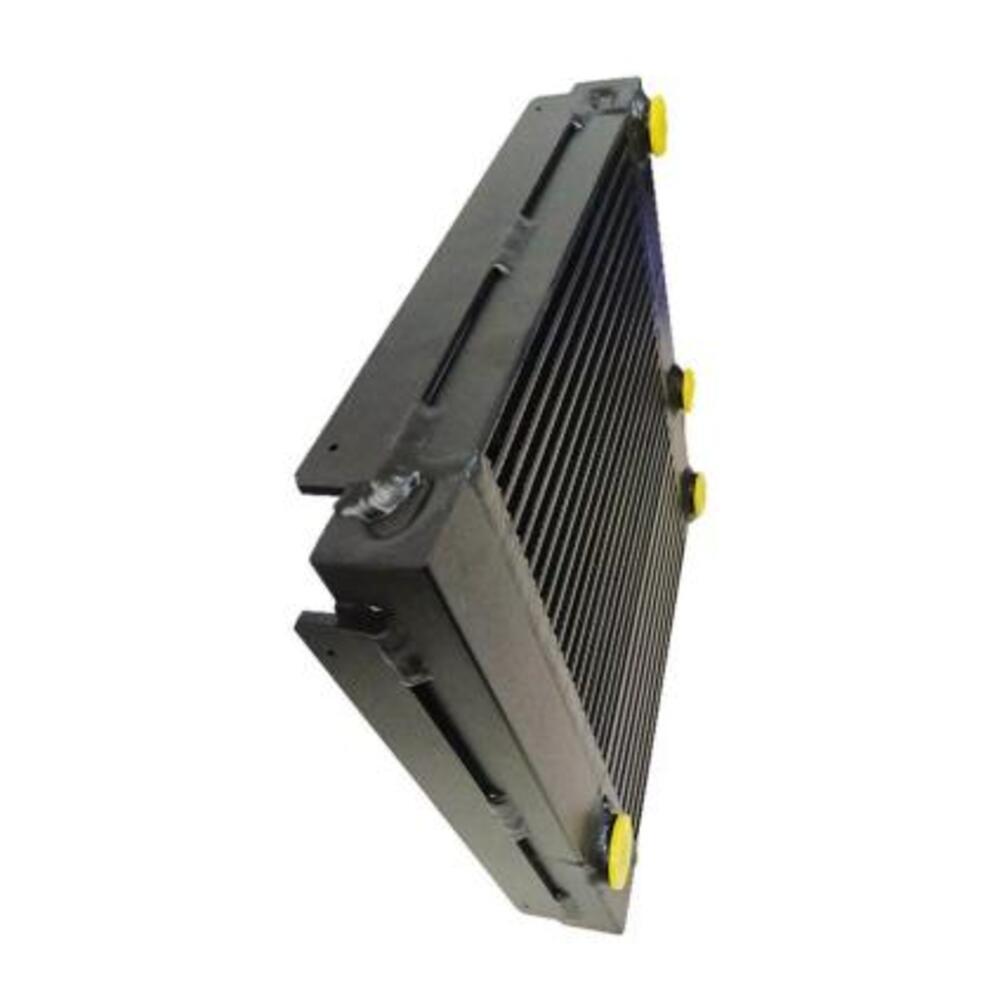

This small vertical thin black coated aluminum heat exchanger is specifically designed for thermal management systems in light electric construction machinery, mini battery forklifts, small off-road new energy vehicles, and portable energy storage equipment.

The unit features a high-temperature matte black anti-corrosion electrostatic coating throughout, with four pipeline interfaces equipped with matching yellow plastic dust-proof caps to prevent contamination during transportation and assembly. Multiple mounting holes are distributed around the narrow frame, and dense vertical turbulence fins are integrated with internal coolant flow channels via vacuum brazing.

Matched with low-flow ethylene glycol cooling medium, it efficiently dissipates heat from drive motors, small-capacity power batteries, and miniature hydraulic systems under light-load operation. The compact structure allows customization of thickness, interface size, and fin density to fit limited cabin spaces in small electric vehicles.

• Full surface matte black high-temperature anti-corrosion coating protects aluminum substrate from dust, rain, and weak corrosive substances, preventing oxidation and extending service life
• Four interfaces equipped with independent yellow dust caps fully seal liquid ports during storage and assembly, preventing foreign matter entry and reducing maintenance failures
• Narrow compact thin-sized vertical core design with ultra-small footprint fits perfectly in mini electric loaders, forklifts, and portable energy storage cabinets
• Perimeter multi-point uniform mount hole frame enables flexible installation angles without auxiliary brackets
• Low-density vertical energy-saving fin matrix with low air flow resistance matches miniature silent cooling fans, reducing power consumption and improving battery performance

• Material Advantage: Light thin aluminum substrate with black anti-corrosion coating reduces vehicle load and battery energy loss
• Process Advantage: Integral vacuum brazing eliminates internal micro leakage, smooth narrow flow channels resist scaling and blockage
• Layout Advantage: Mini compact structure with multi-angle mounting holes offers strong versatility across multiple vehicle models
• Quality Control: Each unit undergoes high-pressure tightness testing with calibration of coating uniformity, interface concentricity, and frame flatness
• Customization Advantage: Adjustable core thickness, interface caliber, mounting hole spacing, and coating color with factory direct batch supply

Primary sales regions include domestic mini electric forklift and light electric construction machinery OEM manufacturers, portable energy storage equipment factories, small new energy vehicle thermal system component suppliers, and Southeast Asia small electric vehicle spare parts merchants.

Core customers include mini electric engineering vehicle complete machine factories, small battery cooling system manufacturers, and light new energy hydraulic radiator supporting enterprises.
